Extremely High Resolution of 1600 x 1200 Pixels

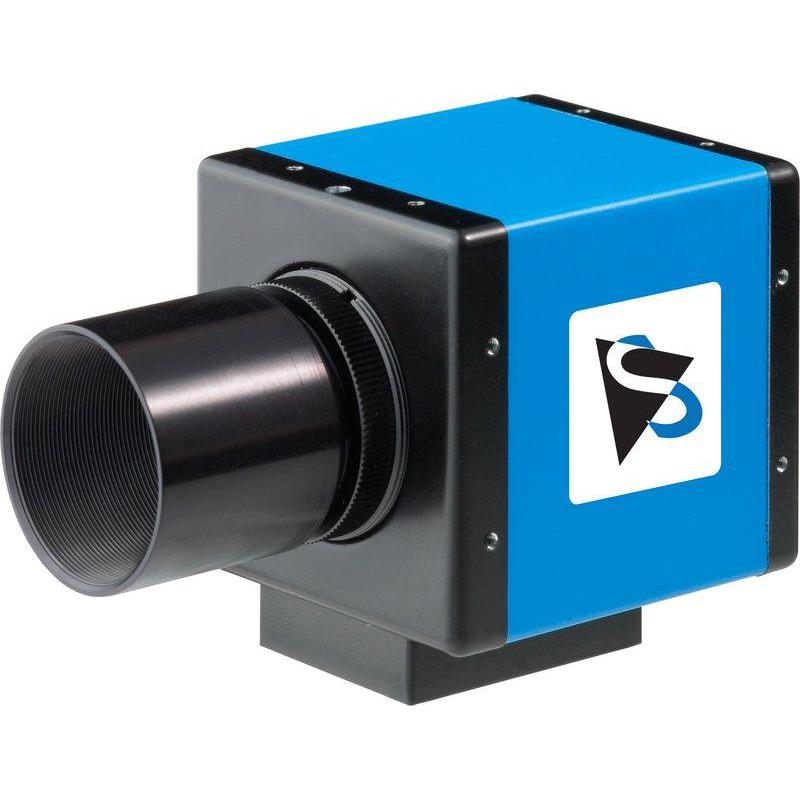

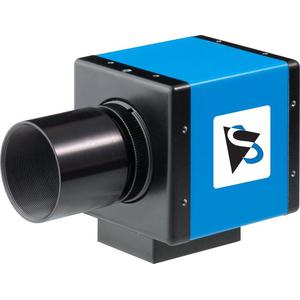

With its extremely high resolution of 1600 x 1200 pixels, the DMK 51AG02.AS is ideally suited to capture detailed images of the night sky, which demand the finest precision. The camera ships with IC Capture.AS, a comprehensive software package with which you can capture lossless and uncompressed images sequences and write them to disk as AVI files, or as a series of singular bitmaps.
Sony ICX274AL 1/1.8 " CCD Chip
The DMK 51AG02.AS ships with the monochrome Sony ICX274AL progressive scan CCD chip. With its 1/1.8 " format, the CCD chip produces a resolution of 1600 x 1200 pixels. Even at very long exposure times - up to 60 minutes exposure are possible - noise is minimal. Thanks to this extremely high quality, the Sony ICX274AL CCD chip is also often used in other scientific, industrial and medical image processing applications.
No Compression, No IR Cut Filter
The DMK 51AG02.AS does not compress the video stream it outputs - the video data that is captured by the CCD chip is outputted directly by the GigE connector. Similarly, the camera does not have an IR cut filter, a color filter, nor an other kind of electronic filter. The camera is, therefore, ideally suited to capturing very true-to-life images of the night sky.
High Speed Data Transfer Via GigE
In order to transfer the vast amount of data created by the stream of uncompressed and lossless monochrome images to the host PC, you need a very high speed bus. Hence, the DMK 51AG02.AS is fitted with a fast GigE connector.
Included Software
The DMK 51AG02.AS ships with the device driver IC WDM GIGE TIS and the camera control and image acquisition application IC Capture.AS. Both of these run on Windows XP, Windows Vista and Windows 7 (32 and 64 bit).
