Mikroskop Panthera U, trino, cam

PANTHERA U SERIE, Trinokular, Moticam S3

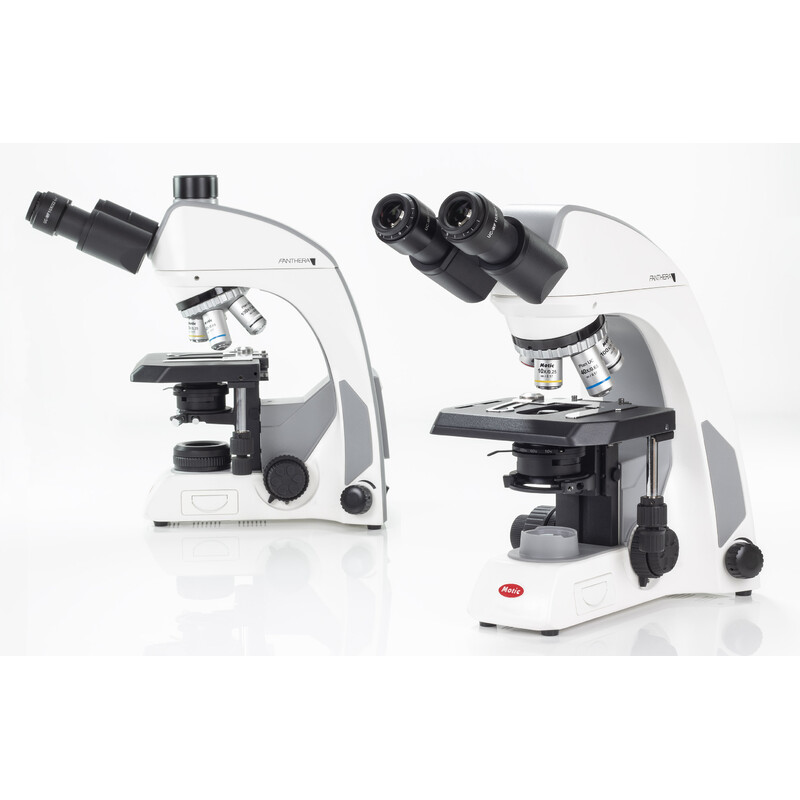

The upright microscopes Panthera U & KU introduce a new level of performance to natural science applications: a new Plan Achromatic performance level combining a complete series of UC objectives with UC eyepieces of 22mm Field of View. The new patented rackless stage houses a unique dual-slide holder. Illumination is provided by an interchangeable 3W LED light source in a Fixed (U) or Full (KU) Koehler setup. The Motic LightTracer system with a built-in Low-Energy mode and an LED feedback indicator helps to optimize your workflow. Enhanced optics coupled with an intelligent illumination system - the Panthera U/KU models are a user-friendly microscopes that delivers unmatched color fidelity and definition.

SEAMLESS INTEGRATION WITH YOUR WORKFLOW

For maximum use of accessories, the Panthera U/KU models are deeply integrated into Motic’s Upright microscope system. They can be upgraded with Motic’s universal turret condenser with all Phase rings and a Darkfield stop, or with Polarizer/Analyzer for birefringent samples. With the Panthera U/KU models, it is now possible to incorporate the fluorescence method into the daily workflow without the environmental risks associated with mercury bulb usage.

NEW UC OPTICS FOR ULTRA CONTRAST IMAGES

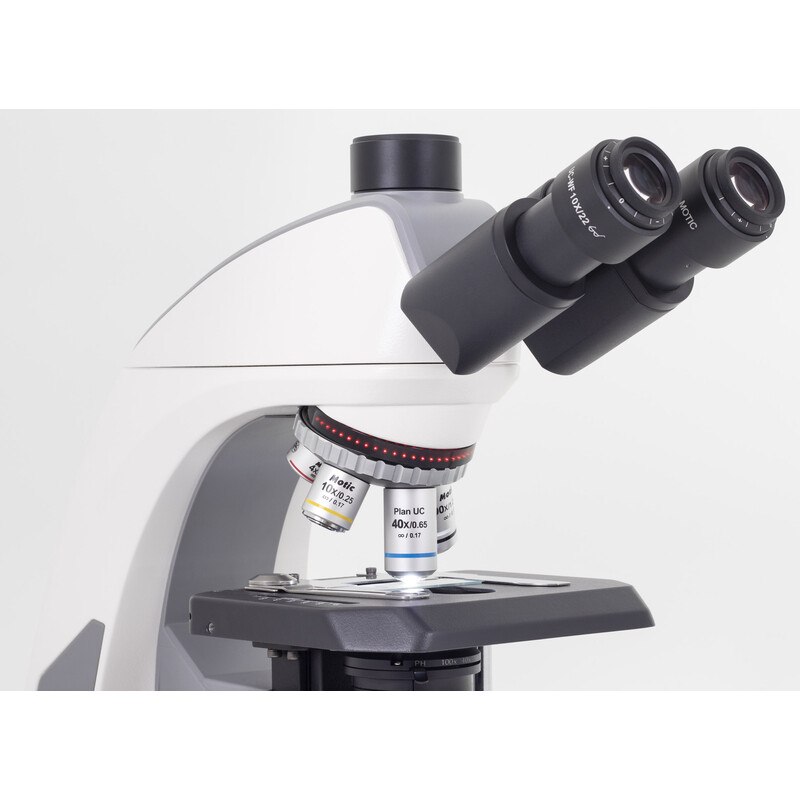

The entire series of new Plan UC Achromatic objectives, from 2X to 100X magnification, show significantly improved image contrast. The new 100X/0.8 “Dry objective” is especially favorable in environments where the time-consuming immersion procedure may be considered too complicated. The new UC eyepieces with 22mm FOV (Field of View) pair perfectly with this new objective generation, as they complement the improved field flatness of all Plan UC objectives.

ROBUST FUNCTIONALITY FOR DEMANDING ENVIRONMENTS

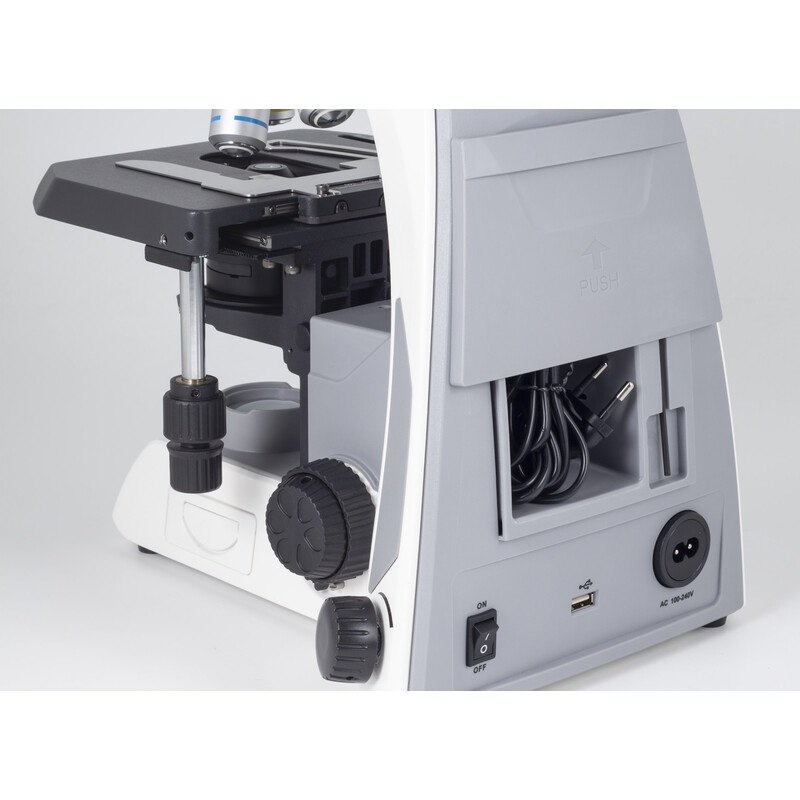

Motic’s Panthera U/KU models are specifically designed for rough laboratory environments. The patented compact rackless stage has an anti-scratch coating and a new dual-slide holder that allows one-handed operation. The Panthera U/KU standard eyepiece tubes feature a 25° viewing angle for maximum comfort. The interpupillary distance of 48-75mm can easily be adjusted, while the “butterfly” movement may increase the viewing height by 60mm to accommodate different physiques. The integrated power cord compartment and carrying handle are user-friendly features that ensure easy handling.

SMART ILLUMINATION MANAGEMENT

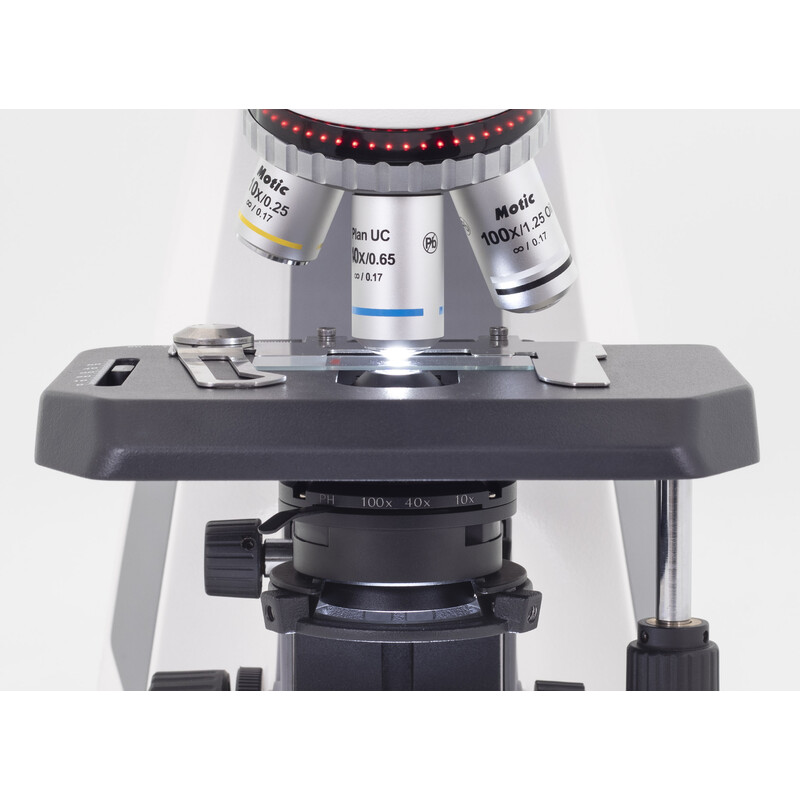

The Panthera U/KU microscopes feature Motic’s new intelligent illumination system, the Motic LightTracer. This system combines a digital multi-function knob, a coded nosepiece, and an LED feedback indicator. The automated light management is centralized in the digital multi-function knob. It is responsible for adjusting the light intensity, works with the coded nosepiece to memo rize the illumination for each objective position, and activates the Sleep Mode. It also controls optional Epi-illuminators like the FLED modules. The 3W LED light source can easily be changed to different color temperatures (3500K/5500K).

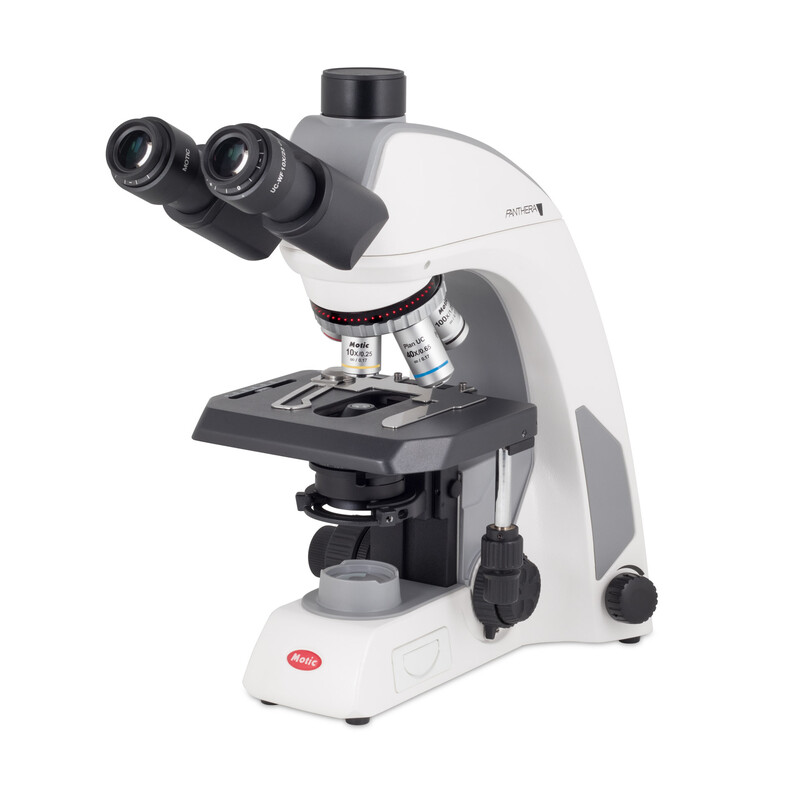

PANTHERA U Trinocular

• Optical system: Colour Corrected Infinity Optical System (CCIS ®)
• Observation tube: Trinocular head, Siedentopf type, 360º swiveling
• Inclination: 25º inclined, 360º swivelling
• Trinocular light split: Fixed 50:50
• Interpupillary distance: 48-75mm
• Diopter adjustment: On both eyepieces, +/- 4 diopter
• Eyepieces: Widefield UC-WF10X/22mm with diopter adjustment
• Nosepiece: Reversed quintuple, coded
• Objective classification: CCIS UC Plan Achromatic (Pb free), DIN
• Objectives: 4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)
• Objective mounting thread: W 4/5"x1/36" (RMS standard)
• Stand type: Upright
• Stage: Compact mechanical stage with built-in low position rackless coaxial stage control and sample holder
• Stage size: 185x145mm
• Travel range X&Y: 75x50mm
• Condenser: Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
• Diaphragm: Iris diaphragm
• Focus mechanism: Coaxial coarse and fine focusing system with tension adjustment
• Fine focus precision: 2µm
• Focusing stroke: 25mm
• Upper limit stop: Upper limit stop preset but adjustable
• Filter holder: On top of the illuminator
• Transmitted illumination: Fixed Koehler LED 3W with intensity control
• Illumination interchangeability: LED color temperature interchangeability
• Illumination features: Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
• Transformer: Internal
• Power supply: 110-240V (CE)

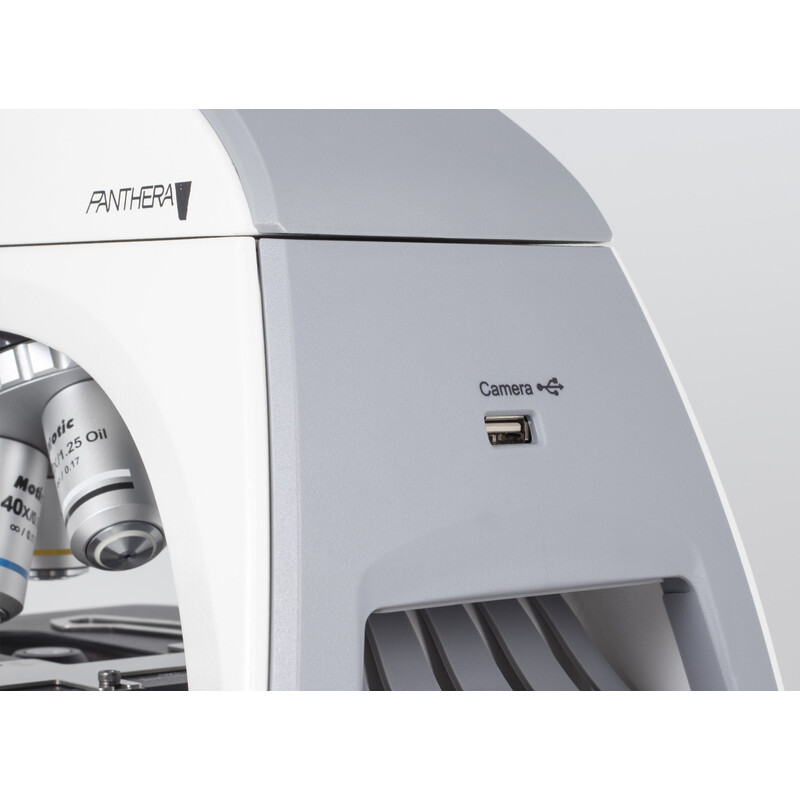

• Other features: USB 2.0 for external camera power
• Accessories included: Dust cover, power cord, Hex key, immersion oil (5ml)
• Dimensions LxWxH: 282x210x396mm
• Net weight: 8.3kg

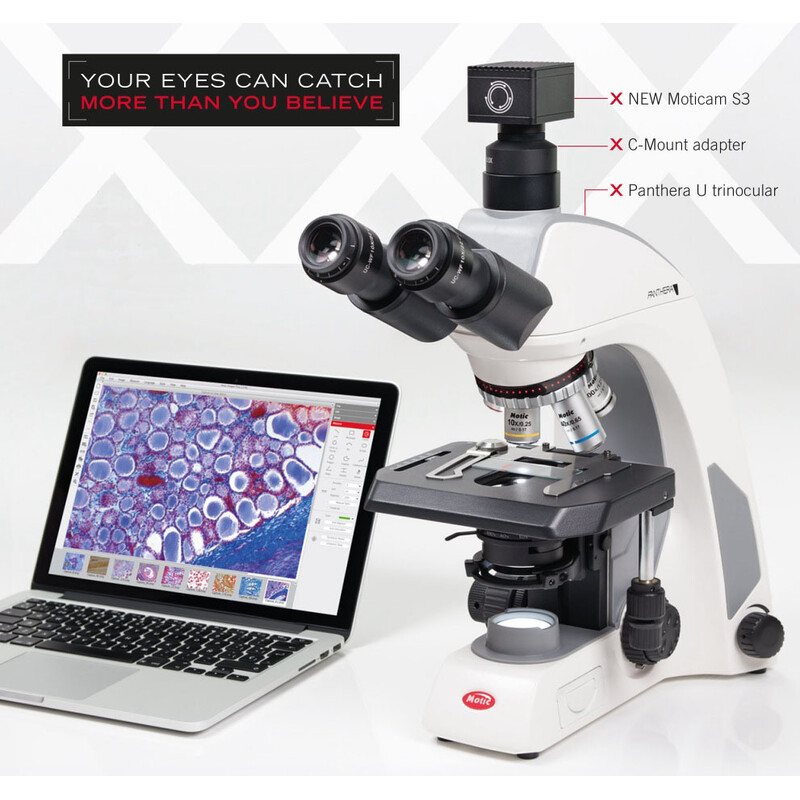

• Moticam S3 Lite 3 Megapixel with C-Mount Adapter
