Mikroskopy > Mikroskopy > Mikroskopy stojące > Mikroskopy pola jasnego > Euromex > EcoBlue > Euromex Mikroskop EC.1653, trino, LED, 40x, 100x, 400x, 600x
Numer produktu: 49887

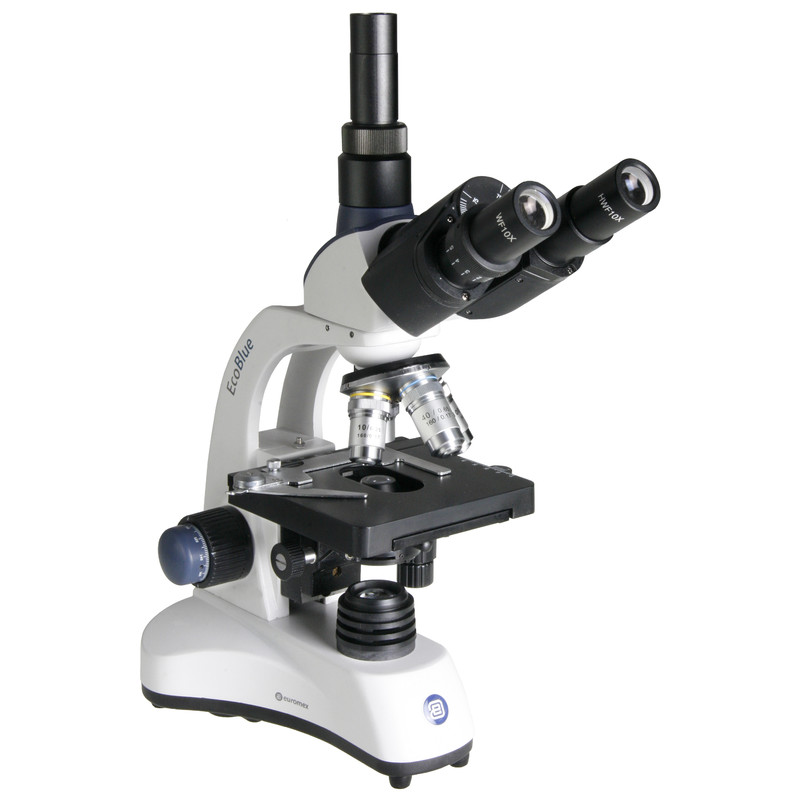

Mikroskop EC.1653, trino, LED, 40x, 100x, 400x, 600x

w dłuższym terminie
Artykuł już niedostępny + czas przesyłki

Opis artykułu

Polski tekst jest jeszcze w opracowywaniu. Na razie dostępna jest tylko wersja angielska. Przepraszamy!

EcoBlue

Specifications:

Eyepiece: Secured DIN WF 10x/18 mm with pointer

Head: Monocular 45° inclined tube and binocular 30° inclined tubes. The digital versions are equipped with a 1.3 Mpixel 1/3 inch CMOS Color USB2 camera @ 1280x 1024 pixels

Nosepiece: Revolving quadruple forwarded nosepiece on ball-bearings. Polarization models equipped with swing-in analyzer

Objectives: All models are standard equipped with achromatic corrected 4x/0.13, 10x/0.25, S40x/0.65 objectives. The 20x/40, S60x/0.85 and S100x/1.25 objectives are also available. All optical parts are antifungus treated and are anti-reflection coated

Stage: Plain 123 x 119 mm stage with 2 object clamps except for the EC.1x5x models which are equipped with an integrated mechanical X-Y stage. Polarization model s with a 360° rotatable 129 mm round stage and 2 object clamps

Condenser: In height adjustable Abbe condenser

Focusing adjustment: axial coarse and 200 µm fine adjustments, 2 µm precision. Friction adjustment

Illumination: 1 W intensity adjustable LED illumination with internal power supply. The models with an integrated mechanical stage are equipped with internal batteries. Polarization models come standard with halogen illumination, LED polarization versions are available on request

Software: ImageFocus 4 capture & analysis software is supplied with each digital microscope model. The software is compatible with Windows XP, Vista, Windows 7 & 8, both 32 and 64 bits platforms

EC.1653 Spezifikation

  • Secured DIN WF 10x/18 mm eyepieces
  • Trinocular head Siedentopf type, 30° inclined, 360° rotating
  • Forwarded quadruple revolving nosepiece on ball-bearings
  • Achromatic 4x, 10x, S40x, S60x objectives
  • All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  • Coaxial coarse and fine adjustments with 200 graduations. Precision 12.5 ìm,
  • 2.5 mm per rotation. Total travel approximately 15 mm. Friction adjustment
  • Plain 130 x 125 mm stage with integrated 70 x 27 mm X-Y mechanical stage
  • Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  • 1 W NeoLED™ illumination with built-in 3 rechargeable batteries
  • External power supply 100-240 V (CE)
  • Supplied with power cord and dust cover in styrofoam case

Dane techniczne

Optyka


Skala
40-1000 (20 (N.A. 0,40) achromatyczny, 40 (N.A. 0,65 z ochroną preparatu) plan)
Kondensor
Kondensor Abbego NA 1.25 z przysłoną irysową i uchwytem filtrowym, regulacja wysokości
Typ lampy
LED
Typ obiektywu
achromatyczny
Okular
10x/18 (Szerokokątny)
Zasilanie elektryczne
85-240 V, wbudowana ładowarka baterii, odłączany kabel zasilający
Powiększenie
40-1000 (10, 40, 100, 400)
System optyczny
DIN (160mm)

Wydajność


Regulacja jasności
tak
Pole jasne
tak

Mechanika


Wgląd (°)
Wizjer kątowy 45°
Stolik przedmiotowy mikroskopu
stolik krzyżowy (123 x 119 mm)
Ustawianie ostrości
regulacja zgrubna i precyzyjna
Rodzaj konstrukcji
Trinokular

Specyfika


Praca z akumulatorem
tak
Uchwyt filtru
tak
Osłona przeciwpyłowa
tak

Ogólnie


Seria
EcoBlue

Do użytku z


Amatorzy
tak

Dziedzina


Zajęcia
tak

Zakres zastosowania


Szkoła
tak
