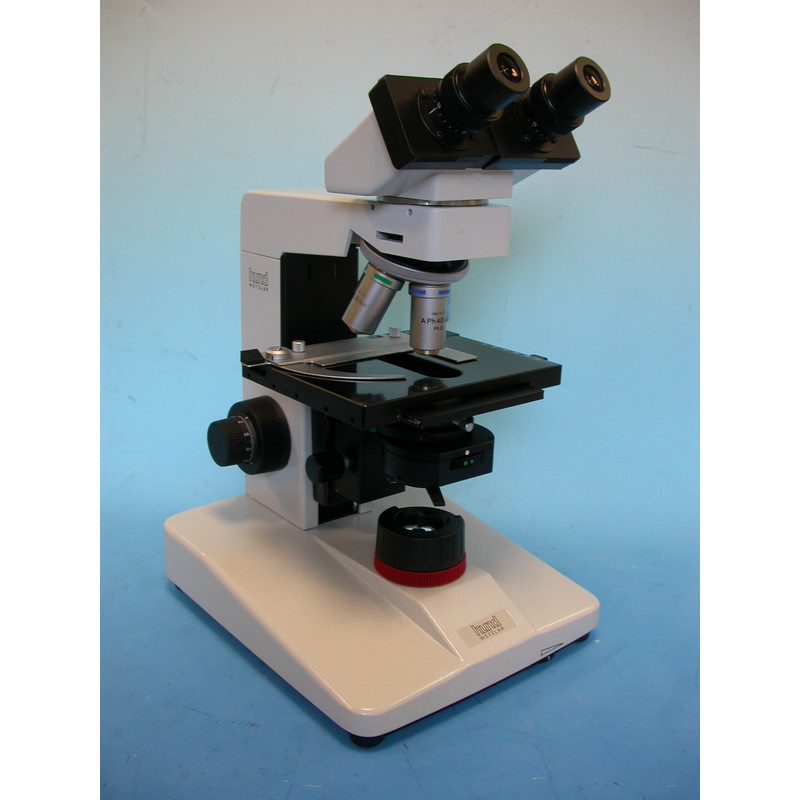

Mikroskop H 600 Wilozyt Plan, bino, ph, 100x, - 1000x

H 600 WILOZYT PLAN

was developed specifically for gynecological laboratory and used to examine unstained undyed and dyed Zellausstrichpräparate

For bright field, phase contrast and darkfield with planachromatic objectives and with an increased field of view.

Description:

• Tripod: inclined at 5-fold nosepiece, forward
• Contrasting methods: bright field, dark field and phase contrast
• Tube: binocular, 30 °
• Eyepieces: 10x / 20, with an enlarged field of view
• Lenses: Achro 10 / 0.25, plan Ph 20 / 0.40, plan Ph 40 / 0.65, Achro 100 / 1.25 (oil)
• Magnification: 100 - 1000 times
• Plan achromatic objectives
• Plan 10 / 0.25
• Plan Ph2 20 / 0.40
• Plan Ph3 40 / 0.65
• Plan 100 / 1.25 (oil)
• Combination condenser NA 1.2 with aperture stop can be switched to the bright field, phase contrast 2 u. 3 (ph ph 20x and 40x)
• Stage: Mechanical stage 160x130mm
• Condenser: Combination condenser NA 1,2
• Illumination: 12V / 30W halogen, continuous regulation

Delivery:

• 2 eyecups
• Filter slide II
• Conversion filter and filter VG 9
• 2 centering keys
• replacement lamp
• 2 spare fuses
• power cable
• operation manual
• Dust cover
