Astrofotografia > Aparaty fotograficzne > Aparaty do astrofotografii > Apogee > Alta > Apogee Aparat fotograficzny Alta F8300 grade S
Numer produktu: 53220

Aparat fotograficzny Alta F8300 grade S

w dłuższym terminie
Artykuł już niedostępny + czas przesyłki

Opis artykułu

Polski tekst jest jeszcze w opracowywaniu. Na razie dostępna jest tylko wersja angielska. Przepraszamy!

The Apogee Alta family has been a mainstream of high end imaging for many years, offering a wide range of full frame and interline CCDs. Cooling performance down to 45° C below ambient ensures optimal signal to noise for long exposure applications. A USB 2.0 interface offers the convenience of simple, robust connection to PC.

Apogee Alta cameras are available with a wide variety of sensors, including: Back-illuminated sensors with very high quantum efficiency, some with sensitivity in the deep UV; Interline transfer sensors with fast electronic shuttering and inherent anti-blooming; front-illuminated CCDs with high sensitivity in the near-IR without etaloning and a range of resolution options up to 16.8 Megapixel.

Features and Benefits:

  • High resolution sensors: Sensors up to 16.8 Megapixel, offering large field of view at high resolution
  • Programmable TE cooling to 50 °C below ambient: Ideal for astronomy images, enabling long exposure acquisitions with optimized signal to noise ratio
  • High Dynamic Range: Large pixel sensor variants offer extended intrascene quantification of weak and bright objects
  • 16-bit digitization: High photometric accuracy
  • In built shutter: Shutter during readout and take dark reference frames - 25mm, 43mm or 63mm.
  • USB 2.0: Direct ‘Plug and Play’ connectivity
  • Programmable I/O port: Synchronization with intricate experimental set-ups
  • Remote triggering: LVTTL input allows exposure to start within 25 microseconds of rising edge of trigger
  • Focusing mode: Faster readout option, ideal for focus optimization
  • Precision locking filter wheels (optional): Choose from a range of Apogee family filter wheels, up to 10 position
  • Andor OEM optimization: Compact and robust, Andor integration support, Andor quality enhancement, Andor post-sale support. Now also supported by 'Andor SDK3'

The Apogee Alta F8300 uses a medium format sensor, ideal for applications requiring a large field of view with a smaller pixel size. Anti-blooming structures to prevent image corruption under high light conditions.

Special features:

  • Temperatur stability: +/- 0.1°C
  • Maximum Dynamic Range: 75.3 dB (5839:1)
  • Linearity: >99%
  • Camera Window: UV-grade fused silica
  • Image Sequencing: 1 to 65535 image sequences under software control
  • Shutter: 43mm
  • Blemish Specification: Grade S as per sensor manufacturer definition

Dane techniczne

Wydajność


Antiblooming
tak
Chłodzenie
tak
Kamera kolorowa
nie
Interfejsy
USB 2.0
Typ czujnika
Matryca CCD (Kodak KAF-8300)
Wielkość czipu (mm)
18 x 13,5
Rozmiar piksela
5,4
Zdolność rozdzielcza fotografii
3326 x 2504
Full Well Capacity
40.000
Intensywność transferu bitów (Bit)
16
Max. różnica chłodzenia w warunkach temperatury otoczenia
-45
Szum przekazowy
9,9
Szum termiczny
0,016
Binning
1 x 1 to 8x 2504
Mikrosoczewki
tak
Megapiksel
8,3
Odległość fokalna kołnierza (mm)
25,6
Max. czas naświetlania (min)
95
Przekątna matrycy (mm)
22,5

Ogólnie


Wymiary zewnętrzne DxSxW (cm)
15 x 15 x 6,4
Waga (g)
1400
Seria
Alta

Zakres zastosowania


AllSky, Meteore
nie
Autoguider
nie
Księżyc & Planety
tak
Mgławice & Galaktyki
tak

Zalecane akcesoria

Filtry (2)
Filtry blokujące

Omegon Filtry blokujące FILTR UV/IR CUTOFF 1,25"

$ 79,00*
Spektrografia & Fotometria (1)
Spektroskop

Paton Hawksley Spektroskop Star Analyser 100

$ 203,00*

*Wszystkie ceny obejmują VAT, plus koszty przesyłki.

Apogee Aparat fotograficzny Alta F8300 grade S

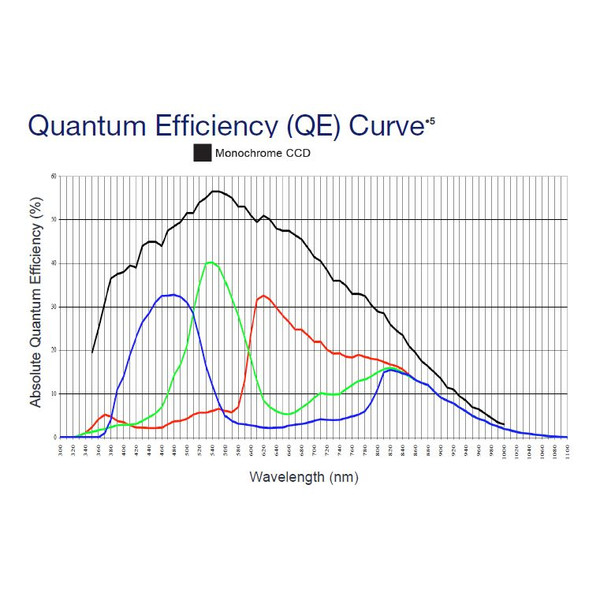

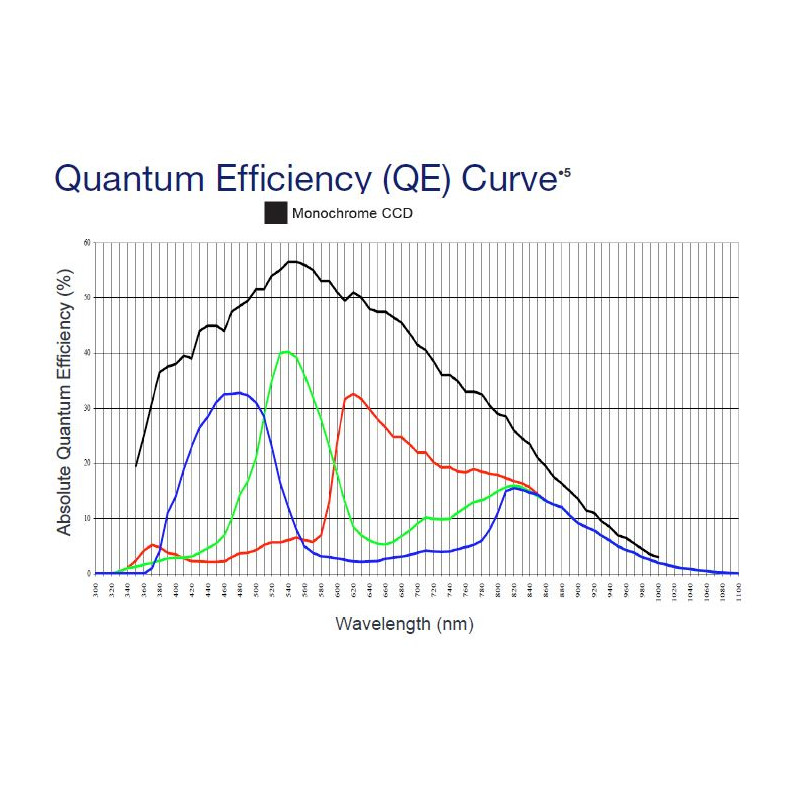

Wydajność kwantowa
