Montaże i akcesoria > Montaże > Paralaktyczne z GoTo > iOptron > CEM25 > iOptron Montaż CEM25 GoTo
Numer produktu: 48503

Montaż CEM25 GoTo

w dłuższym terminie
Artykuł już niedostępny + czas przesyłki

Opis artykułu

Jeśli artykuł nie znajduje się w magazynie, zauważ proszę, że musi on zostać sprowadzony od producenta. Zamówień u producentów dokonujemy w regularnych cyklach. Prosimy o niezwłoczne zamówinie artykułu, tak, aby mógł on być dostarczony w podanym terminie. Jeśli potrzebujesz danego artykuł wcześniej, za dodatkową opłatą, możemy go zamówić specjalnie dla Ciebie. W tym celu prosimy o kontakt z naszym Biurem Obsługi Klienta.

In the case that this article currently is not available from the warehouse, please note the following: we order from this supplier in regular intervals. Please place your order now, so that we may take into account your order and deliver the article to you by the above-mentioned date. If you need the article earlier, we can rush it for you for an additional price. In this case, please contact our customer service department.

Polski tekst jest jeszcze w opracowywaniu. Na razie dostępna jest tylko wersja angielska. Przepraszamy!

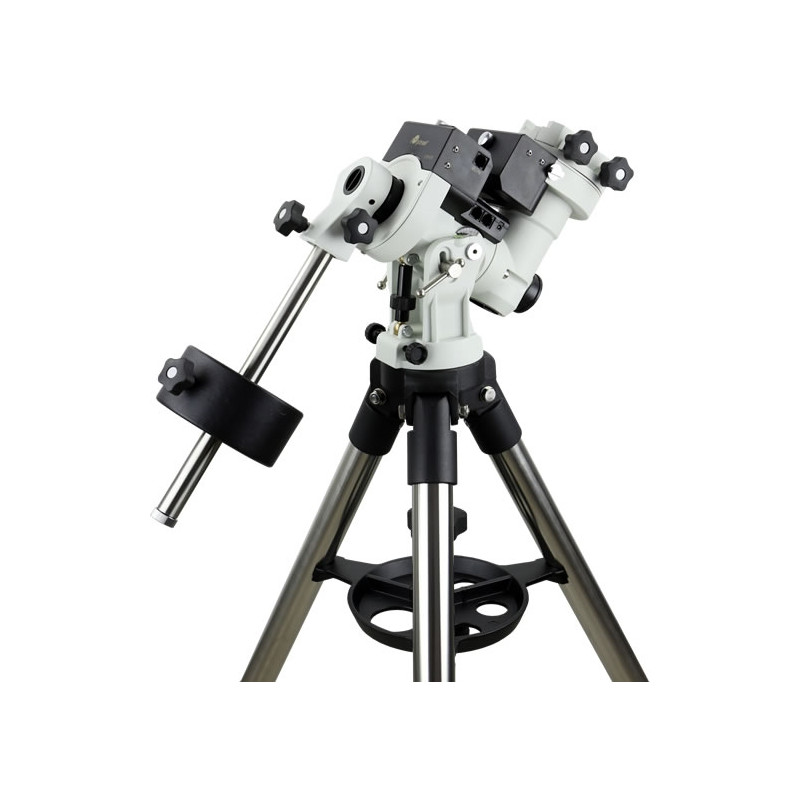

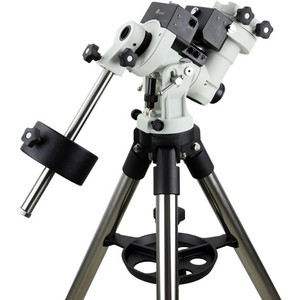

Center-balanced Equatorial Mount, whisper quiet and light weight!

The "Z" design mount puts the weight of the payload at the center of gravity allowing for greater natural stability. Given its payload capacity, this means the "Z" designed mount is unusually light. A nice benefit when setting up at a remote site. Other features include an adjustable counterweight bar to prevent obstruction with the tripod. And polar aligning is quick and accessible all the time since the polar scope is not blocked by the declination shaft.

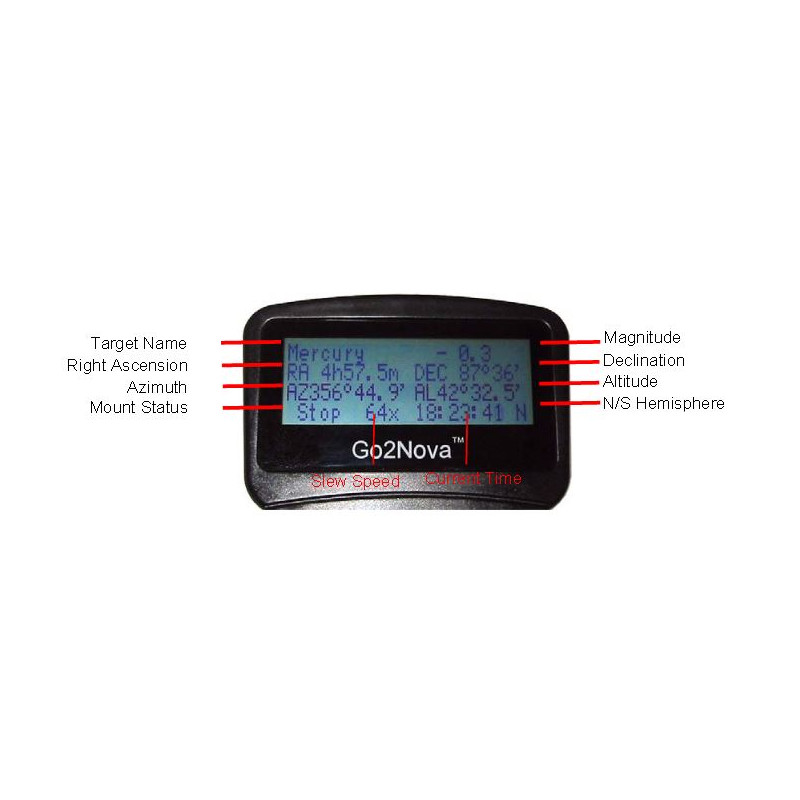

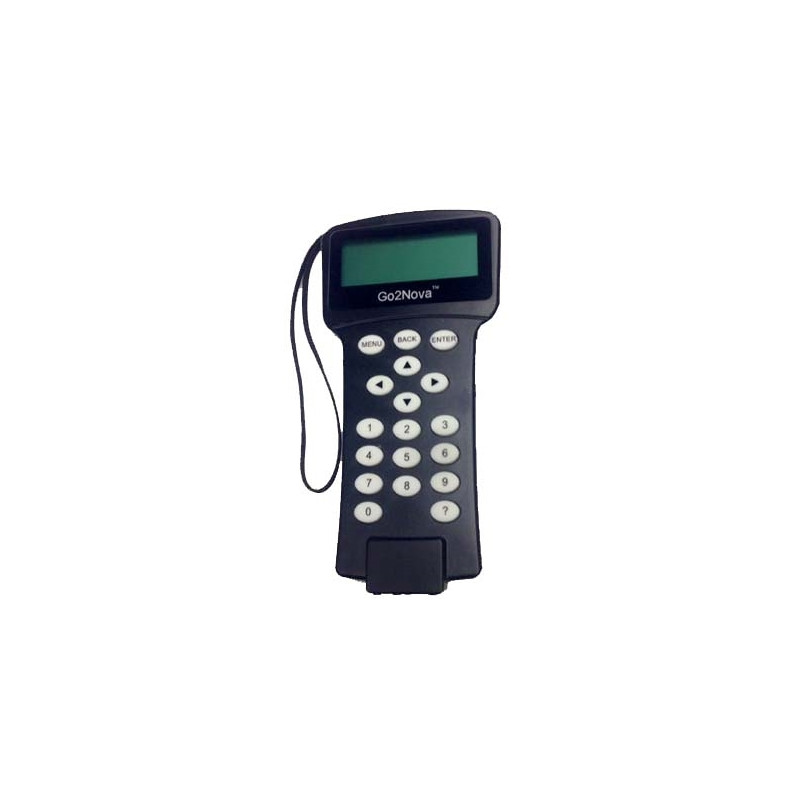

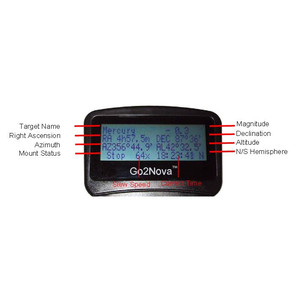

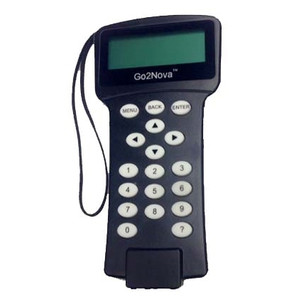

The CEM25 is equipped with the latest advanced Go2Nova-technology, making it one of the most powerful and accurate mounts available. Its database includes over 59,000 objects. The Go2Nova-Hand Controller is intuitive to use and its large 4-line LCD screen simplifies the process of setting telescopes and locating objects.

Features:

  • Specialized astrophotography mount ideal for entry-level and intermediate Astrophotographers
  • Spring loaded gear system with customer adjustable loading force
  • Gear switches on both R.A. and DEC axes for easy balancing when disengaged
  • iOptron AccuAlignTM calibrated polar scope with dark-field illumination and easy polar alignment procedure, allowing for fast and accurate polar alignment
  • Polar alignment routine for those who can’t see the Pole Star
  • Integrated ST-4 autoguiding port
  • Built-in 32-channel Global Positioning System (GPS)

Stepper motor with low power consumption: The mount uses up to 60% less GoTo power consumption then other mounts in category.

Dane techniczne

Wydajność


Typ
Paralaktyczne z GoTo
Max. ciężar udźwigu (kg)
12.3
Typ silnika
Silniki krokowe
Waga (g)
4700
Przeciwwaga
1
Średnica belki obciążnika (mm)
20
Regulacja wysokości bieguna (°)
0° - 60°
Dokładność prowadzenia
0,14
Zasilanie elektryczne
12
Średnica łożyska kulkowego DEC (mm)
55
Średnica łożyska kulkowego RA (mm)
55
Średnica osi rektascensji (mm)
35
Średnica osi deklinacji (mm)
35
Średnica ślimacznicy DEC (mm)
88
Średnica ślimacznicy RA (mm)
88
Zęby koła ślimakowego (DEC)
144
Zęby koła ślimakowego (RA)
144
Materiał koła ślimakowego
Aluminium
Materiał ślimaka
Mosiądz

Specyfika


System GoTo
tak
Lunetka biegunowa
tak (oświetlony)
Sterowalność za pomocą PC
tak
Korekta PEC
tak
Libela
tak

Wyposażenie


Stolik na akcesoria
tak
Skrzynka transportowa
nie

Statyw


Durchmesser der Stativbeine (mm)
38,1
Materiał statywu
Stal
Ciężar statywu (kg)
5

Ogólnie


Seria
CEM25
Ciężar całkowity (kg)
9,7

Pilot GoTo


Baza danych
59000
GPS
tak
Oprogramowanie
Go2Nova 8408
Wersja językowa systemu GoTo
Angielski
iOptron Montaż CEM25 GoTo
iOptron Montaż CEM25 GoTo
iOptron Montaż CEM25 GoTo
