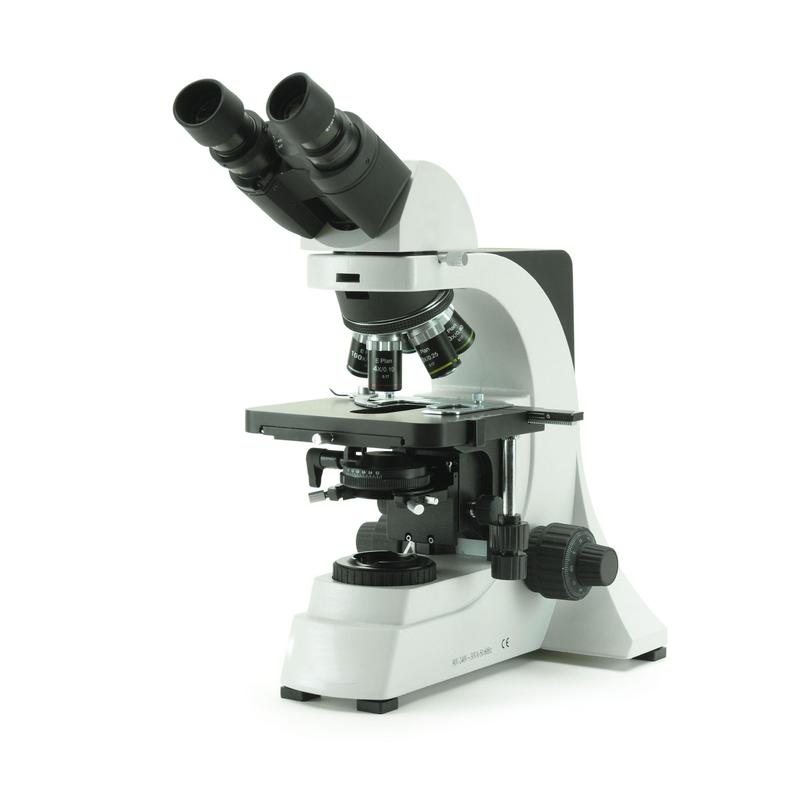

Mikroskop HPM 5200/PL

The series

The laboratory microscopes of the HPM 5000 and HPM 6000 series can hardly be desired!

They should be manufactured in Europe, just have the main characteristics of a laboratory microscope.

They have a 5-position turret equipped with plane-DIN achromatic lenses with magnifications of 4x, 10x, 40, 100x (oil), which have the 40x and the 100x even mounted. With the help of 10x/22mm widefield eyepiece, so enlargements are in the range 40x - 1000x possible with the help of optional accessories, even at up to 1500x can be expanded.

The devices are equipped with a two-lens, centerable, height-adjustable Abbe condenser with double NA (0.22 / 1.22) and fitted iris diaphragm and filter holder.

The object table with an integrated mechanical stage is 175mm long, 145mm wide. The focusing is very deep with coaxial coarse and fine focusing diopter easily possible (+ / - 5). And adjustable eye relief (51 - 78 mm) make it look comfortable and enjoyable.

The HPM 5200/PL in particular is (rotated 360 °, 45 ° inclined) with his binocular head over to offer comfort to be difficult.

It has a continuously variable 20W halogen lighting with built-in field diaphragm for Kohler.
