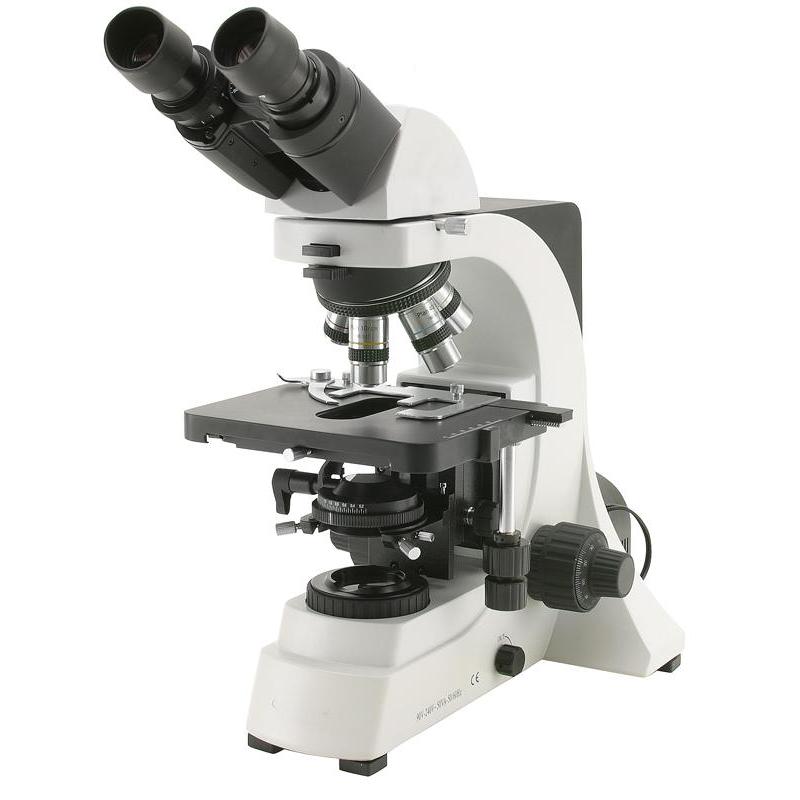

B-500 Series: High Quality Upright Laboratory Microscopes
The B-500 microscopes have been designed for the best performance in routine laboratory use.
X-LEDTM - The future of illumination
Optika is proud to introduce its own revolutionary LED powered illumination system. Developed by their R&D dept. it consists of a new combination of LED and optical technology. A new high-efficiency single chip LED works in combination with a special optical lens, which allows to double the intensity of the light generated by the LED itself. The result is a quantity of light equivalent to the light generated by a normal 30-35W halogen bulb, but with a colour temperature of 6300K.
It means white light instead of the yellow one produced by halogen bulbs.
The electrical consumption (3.6W only) shows the high efficiency of the system: same light intensity with less than 10% of the consumption of a normal halogen bulb.
The lifetime of the Optika LED: 50.000 hours, insted of 1.500 hours
Optical systems & Objectives
With INFINIFIX optical system, the two worlds of infinity-corrected and 160 mm optical system find the way to meet each other. With this exclusive optical system the B-500 series uses a true infinity-corrected optical path, implemented with standard 160 mm objectives.
IOS simply means "Infinity Optical System". All IOS models of B-500 series are equipped with Infinity corrected objectives.
Microscope stand
The modern stand design, with accessible and ergonomic controls, complements and enhances the instrument’s
usability.
Heads
The ample 22 mm field of view and the high-point eyepieces allow for hours of use without eye fatigue.
Condenser
The fully accessible and centrable Köhler layout allows to adjust all the optical parameters of the illumination
system, for the best balance between contrast, resolution and focus depth.
Specimen stage
A generously sized double layer stage, suitable for two specimen slides, optimally completes the instrument.
175x145mm, XY range 76x51mm.
