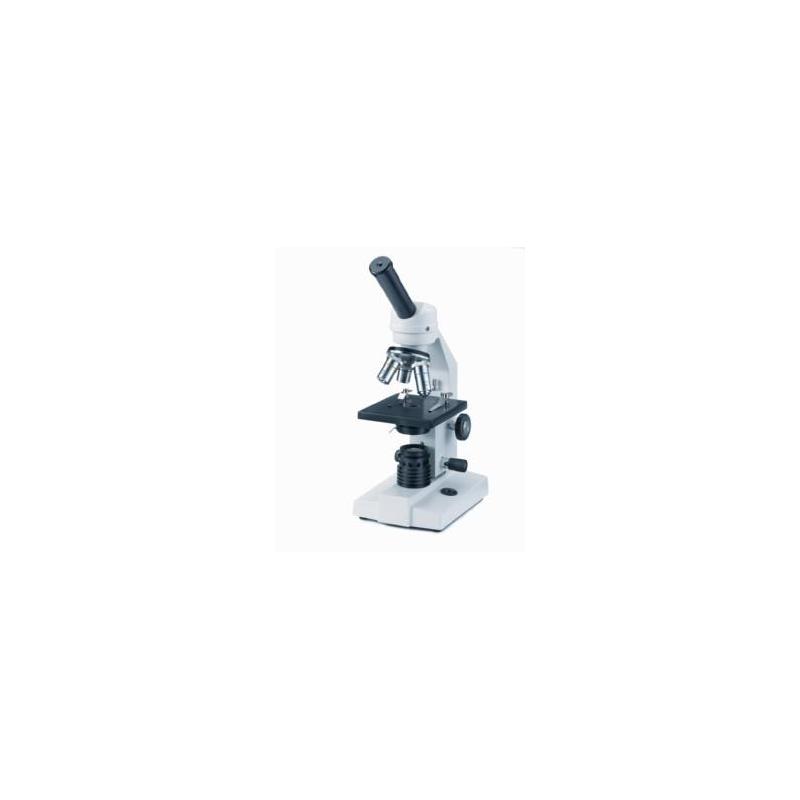

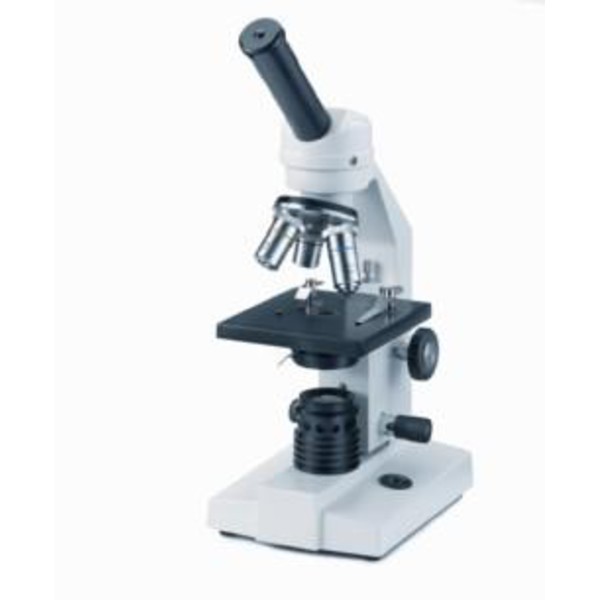

Novex school/student microscope FL-100
- WF 10x/18 eyepiece with fixed pointer, secured
- Monocular 45° inclined tube, 360° rotatable. Tube length 160 mm
- Triple revolving nosepiece
- DIN achromatic objectives 4x N.A. 0.10, 10x N.A. 0.25 and S40x N.A. 0.65.
All objectives anti-reflection coated. The 40x is spring-loaded. Magnification 40x, 100x and 400x - Coaxial coarse- and fine adjustment knobs on both sides with 0.002 mm graduationsare equipped with slip clutch mechanism. Friction of the ball beard focus control can be adjusted.The metal stand is enameled with an off-white stove-hardened lacquer. Specimen protection: height of the stage can be blocked to prevent damage to objectives and slides
- Square stage 110 x 120 mm, with 2 spring-mounted and locked-on object clamps
A mechanical stage is optionally available(part number 80.973) - Fixed condenser N.A. 0.65 and iris diaphragm with filter holder and blue filter
- Integrated Tungsten illumination 230 Volt, 20 Watt. With detachable mains cable for 230 Volt operation
- Packed with dust cover, tools and manual in styrofoam case
