Mikroskopy > Mikroskopy > Mikroskopy stojące > Mikroskopy pola jasnego > Kern > OBE > Kern Mikroskop Bino Achromat 4/10/40, WF10x18, 3W LED, OBE 102
Numer produktu: 66308

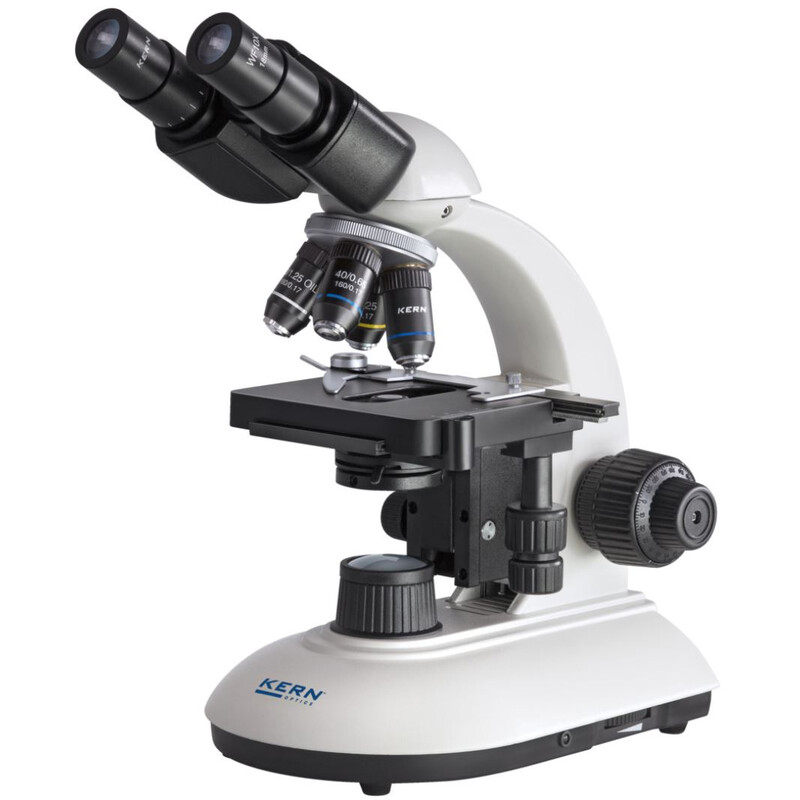

Mikroskop Bino Achromat 4/10/40, WF10x18, 3W LED, OBE 102

w dłuższym terminie
Artykuł już niedostępny + czas przesyłki

Opis artykułu

Polski tekst jest jeszcze w opracowywaniu. Na razie dostępna jest tylko wersja angielska. Przepraszamy!

  • The KERN OBE-1 series is a range of high-quality, fully-equipped compound microscopes, which can't be beaten in terms of ease of use and ergonomic design
  • The strong and continuously dimmable 3W LED guarantees optimum illumination of the samples and also ensures long service life. Mobile use of several models is also no problem through the use of rechargeable batteries
  • The height-adjustable and thereby focusable 1.25 ABBE condenser with aperture diaphragm is a further quality feature of the OBE-1 series and ensures the very best concentration of light
  • Height adjustment of the fully-equipped mechnical stage is carried out using a coarse and fine focusing knob on both sides. The ergonomically designed coaxial drive enables you to work with the samples and move them rapidly
  • A large selection of different eyepieces, lenses, a simple polarisation unit and a dark field kit is also available
  • A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery
  • A C-mount adapter is required to connect a camera to the trinocular version
  • Also available in a set of 10

Scope of application

Training, haematology, sediment investigation, doctor's surgeries

Applications/Samples

Translucent, thin, high-contrast, less complex samples (e.g. plant tissue, coloured cells/parasites)

Technical data

  • Finite optical system (DIN)
  • 4-fold lens revolving unit
  • Siedentopf 30° inclined, 360° rotatable
  • Dioptre compensation one-sided (for binocular and trinocular models)
  • Overall dimensions W×D×H 320×180×365 mm
  • Net weight approx. 4,988 kg

Dane techniczne

Optyka


Okular
10x/18 (Szerokokątny)
System optyczny
DIN (160mm)

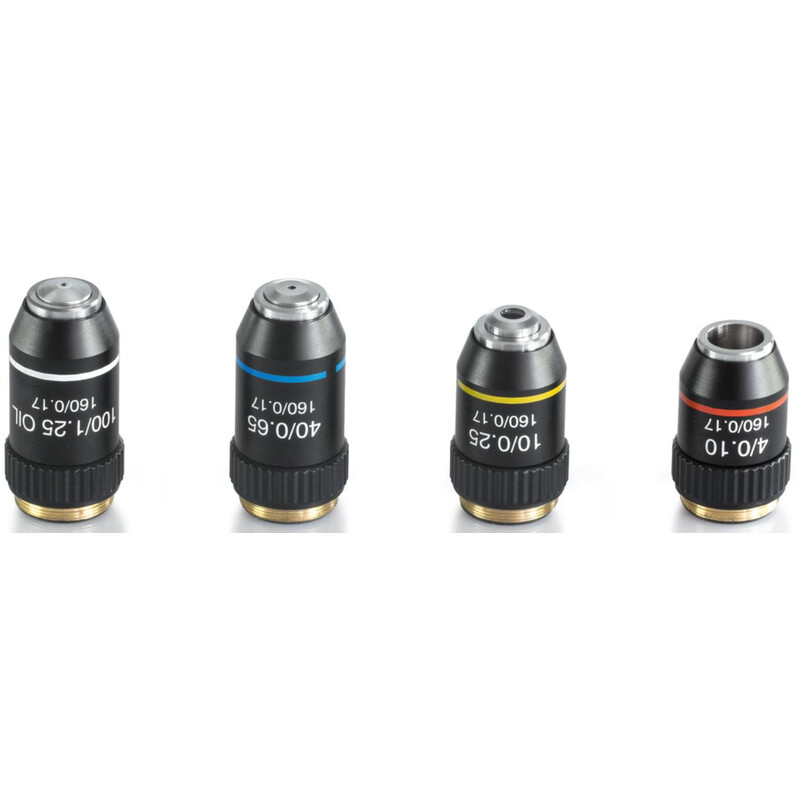

Typ obiektywu
achromatyczny
Obiektyw 2
10×/0.25 W.D. 6.5 mm
Obiektyw 3
40×/0.65 (spring-loaded) W.D. 0.47 mm
Powiększenie
40-400 (40, 100, 400)
Kondensor
Abbe 1,25 N.A. z regulacją ostrości i przysłoną irysową
Typ lampy
LED (3W)
Zasilanie elektryczne
EU-

Wydajność


Regulacja jasności
tak
Pole jasne
tak

Mechanika


Rodzaj konstrukcji
Binokular
Wgląd (°)
30 (Wizjer kątowy 30°, obrotowy 360°)
Ustawianie ostrości
regulacja zgrubna i precyzyjna
Stolik przedmiotowy mikroskopu
-

Specyfika


Praca z akumulatorem
-
Osłona przeciwpyłowa
tak
Uchwyt filtru
tak

Ogólnie


Waga (g)
5500
Szerokość (mm)
180
Długość (mm)
320
Wysokość (mm)
365
Seria
OBE

Do użytku z


Amatorzy
tak
Zaawansowani
tak

Dziedzina


Zajęcia
tak
Medycyna
tak

Zakres zastosowania


Szkoła
tak
gimnazjum
tak
