Mikroskopy > Mikroskopy > Mikroskopy stojące > Mikroskopy pola jasnego > Euromex > BioBlue LAB > Euromex Mikroskop BioBlue LAB, BB.1153PLi, Trino, infinity, plan, 10x/20, 40x-1000x, NeoLED, 3W
Numer produktu: 64559

Mikroskop BioBlue LAB, BB.1153PLi, Trino, infinity, plan, 10x/20, 40x-1000x, NeoLED, 3W

w krótkim terminie
gotowe do wysyłki w 3-5 tygodni + czas przesyłki

Opis artykułu

Polski tekst jest jeszcze w opracowywaniu. Na razie dostępna jest tylko wersja angielska. Przepraszamy!

BioBlue.Lab

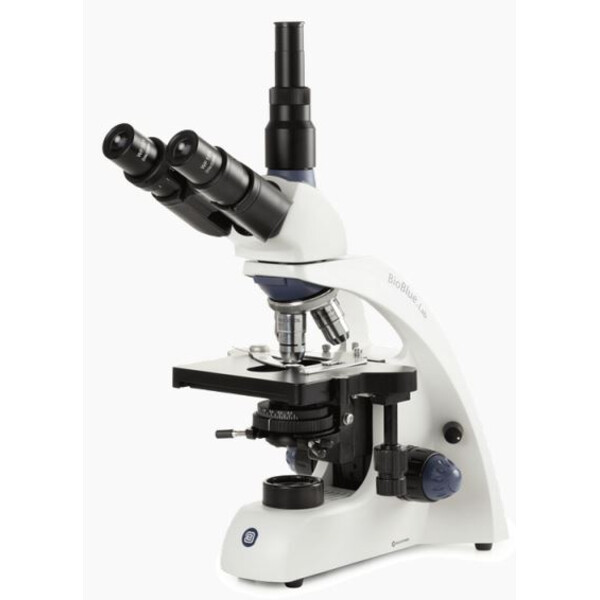

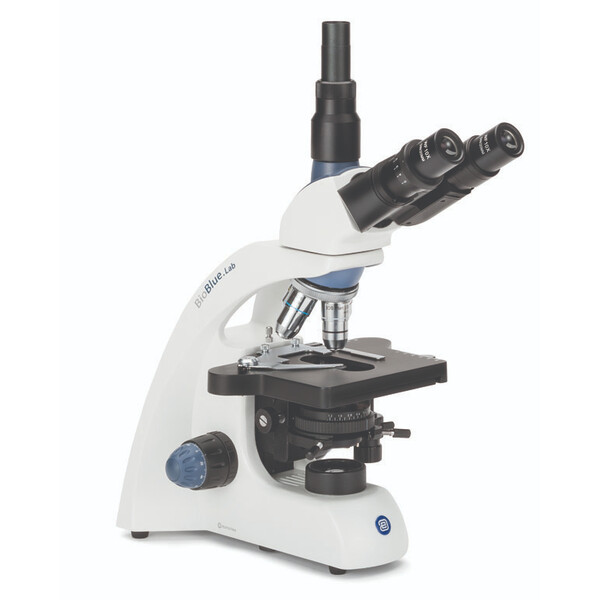

The BlueLine flagship BioBlue.Lab is an instrument that precisely matches highest expectations of microscopy users. These ergonomic easy-to-use microscopes have specifically been designed for educational and laboratory applications. The 150 x 140 mm stage with integrated rackless X-Y mechanical stage with 75 x 30 mm travel, provides a smooth translation of the specimen and highly precise positioning which is highky appreciated in most demanding cytology and histopathology applications. The BioBlue.Lab microscope models offer great functionality and are equipped with WF10x/20 mm eyepieces, plan and IOS plan 4x/ 10x/ S40x/ S100x objectives or plan phase and IOS plan phase contrast objectives 10x / 20x / S40x / S100x. All models are equipped with NeoLED illumination system and are available in binocular and trinocular versions

Highlights

  • Binocular and trinocular models
  • Reversed quadruple nosepiece
  • Plan and plan phase objectives
  • Finity and infinity optical system
  • Integrated mechanical stage
  • NeoLED™ illumination
  • Ergonomic carrying grip

EYEPIECES
Wide field WF 10x/20 mm eyepieces

HEAD
• Binocular and trinocular models have 30° inclined Ø 30 mm tubes
• The interpupillary distance is adjustable between 48 to 75 mm
• All models have a ±5 diopter adjustment on left tube
• All heads are 360° rotatable and secured with a screw
• The trinocular head has a fixed light path beamsplitter (50:50) and generates an erect image

NOSEPIECE
Reversed quadruple nosepiece on ball bearings

OBJECTIVES
• BioBlue.Lab microscopes are equipped with plan, plan IOS, plan phase and plan phase IOS objectives
• Optional 20x/0.40 and S60x/0.85 objectives are also available
• The S40x, S60x and S100x objectives are spring loaded.

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

FOCUSING
• Coaxial coarse and fine adjustments with 200 graduations
• Precision 1.5 μm per graduation, 0.3 mm per rotation
• Total travel approximately 28 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objectives
• The coarse adjustments are equipped with friction control

STAGE
Rackless 150 x 140 mm stage with mechanical 75 x 30 mm X-Y translation stage

CONDENSER
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder. Supplied with white filter
• Heigth adjustable Zernike phase contrast kit with PLPHi IOS objectives and rotating phase contrast disc with four annuli, centering telescope and green filter (see photo)

ILLUMINATION
• Binocular and trinocular models are supplied with an adjustable 3 W NeoLED™ illumination system for increased light output
• Power supply with integrated 100-240 Vac

WEIGHT
The BioBlue.Lab weight is appr. 5.5 kg

PACKAGING
• Supplied with power cord, dust cover, a spare fuse, user manual, 5 ml immersion oil and white filter
• All packed in a polystyrene box

Dane techniczne

Optyka


Powiększenie
40 - 1000
Skorygowany do nieskończoności
tak
Spłaszczenie pola obrazu
Plan
Oświetlenie
Światło przechodzące
Typ lampy
LED
Okular
EWF 10x / 20 mm
Liczba obiektywów
4
Obiektyw 1
4x / 0.10
Obiektyw 2
10x / 0.25
Obiektyw 3
S40x / 0.65
Obiektyw 4
S100x / 1.25
Obiektyw immersyjny
tak
Sprężynowanie
tak
Korekcja barw
achromatyczny
Kondensor
Abbe N.A. 1.25 (Abbe 1,25 N.A. z regulacją ostrości i przysłoną irysową)
System optyczny
nieskończoność

Wydajność


Pole jasne
tak
Kontrast fazowy
tak

Mechanika


Rodzaj konstrukcji
Trinokular
Ustawianie ostrości
regulacja zgrubna i precyzyjna
Stolik przedmiotowy mikroskopu
stolik krzyżowy
Revolver
4

Ogólnie


Seria
BioBlue LAB
Waga (g)
5600
Szerokość (mm)
205
Długość (mm)
260
Wysokość (mm)
448

Dziedzina


Medycyna
tak
Zajęcia
tak

Zakres zastosowania


Kontrast fazowy
tak
Fluorescencja
-
Weterynaria
tak
Szkolenie techniczne
tak

Inne


Numer produktu dostawcy
BB.1153-PLi
