Mikroskopy > Mikroskopy > Mikroskopy stojące > Mikroskopy pola ciemnego > Euromex > Oxion > Euromex Mikroskop OX.3064, trinokular, ciemne pole
Numer produktu: 44138

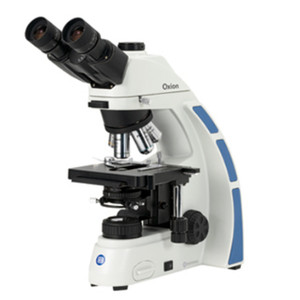

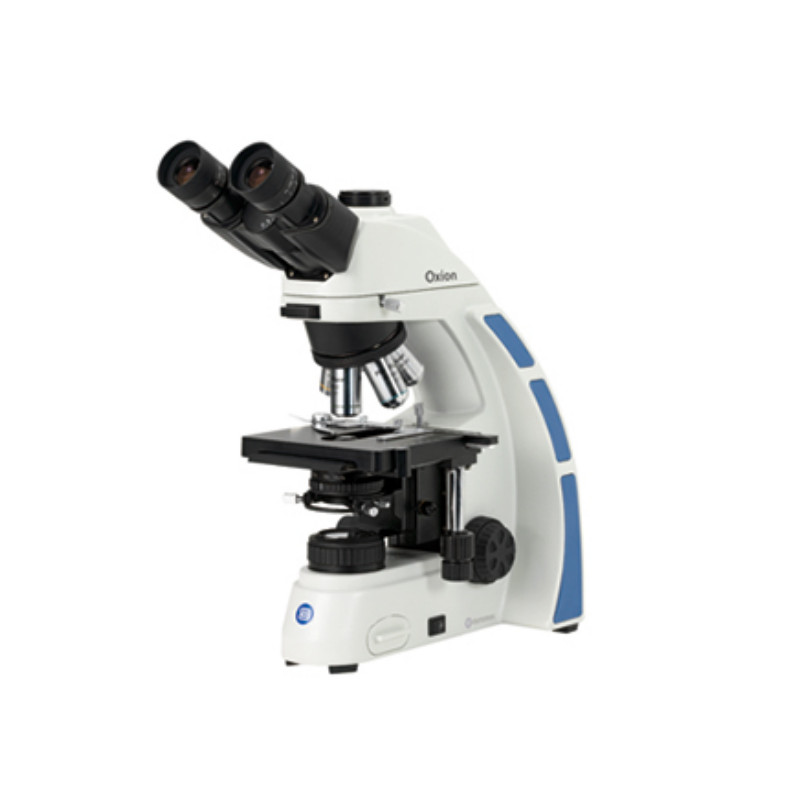

Mikroskop OX.3064, trinokular, ciemne pole

w dłuższym terminie
Artykuł już niedostępny + czas przesyłki

Opis artykułu

Polski tekst jest jeszcze w opracowywaniu. Na razie dostępna jest tylko wersja angielska. Przepraszamy!

Euromex Oxion series

Thanks to the high resolving power, a 3 Watt transmitted LED illumination, a 100 Watt Mercury fluorescence epi-illumination, multiple phase contrast, dark field set and the optional Apochromatic objectives, these microscopes can be used for all kind of demanding applications as well in fundamental research

  • Wide Field eyepieces HWF 10x / 22
  • Semi Plan SMP 4x, 10x, S40x and S100x-oil, IOS, objectives for bright field contrast
  • Plan PL 4x, 10x, 20x, S40x, S60x and S100x-oil, IOS, objectives for bright field contrast
  • Plan Phase PLPH 10x, 20x, S40x and S100x-oil, IOS, objectivesfor phase contrast
  • Plan Semi-Apochromatic PL APO 4x, 10x, 20x, S40x and S100x-oil, IOS, objectives for bright field contrast
  • Plan Semi-Apochromatic PL APO FLUAREX 4x, 10x, 20x, S40x and S100x-oil, IOS, objectives for fluorescence
  • Binocular withor without photo port
  • Height adjustable Abbe condenser N.A. 1.25 with holder for phase sliders
  • Zernike phase and bright field disc condenser with 4 phase rings
  • Zernike phase and bright field disc condenser with 3 phase rings + dark field stop
  • Cardioid dark field Oil-immersion condenser with built-in 5 W LED illumination
  • Large stage with ball beared XY translation stage with optional heating elements and temperature controller
  • Adjustable 3 Watt LED illumination
  • 100 Watt mercury vapor lamp for fluorescence
  • Many fluorphore filter sets available

Models OX.3012 and OX.3015 are equiped with standard Semi Plan IOS objectives for bright field applications
Models OX.3020 to OX.3035 are equiped with standard Plan IOS objectives for bright field applications
Models OX.3040 to OX.3047 are equiped with Plan Phase IOS objectives for phase contrast
Models OX.3050 to OX.3065 are equiped with Plan Semi-Apochromatic IOS objectivesfor bright field applications
Models OX.3070 to OX.3085 are equiped witht Plan Semi-Apochromatic IOS objectives for fluorescence applications
Model OX.3064 is equipped with standard Plan IOS objectives and a cardioid oil-immersion condenser with built-in 5 W LED illumination for dark field applications and living blood analysis

Dane techniczne

Optyka


Skala
40-1000 (20 (N.A. 0,40) achromatyczny, 40 (N.A. 0,65 z ochroną preparatu) plan)
Typ lampy
LED
Typ obiektywu
Planachromatyczny (Skorygowany do nieskończoności)
Okular
10/22
Zasilanie elektryczne
85-240 V
Powiększenie
40-1000
Oświetlenie
Światło przechodzące

Wydajność


Regulacja jasności
regulowany
Typ lampy
LED
Ciemne pole
tak
Pole jasne
tak

Mechanika


Odstęp roboczy (mm)
45
Rodzaj konstrukcji
Trinokular
Wgląd (°)
Tubus obrotowy Siedentopf 30° w pionie. Do tubusu fotograficznego 80/20. Rozstaw oczu 50-75 mm.
Ustawianie ostrości
regulacja zgrubna i precyzyjna
Stolik przedmiotowy mikroskopu
stolik krzyżowy

Specyfika


Stół centrujący
-
Praca z akumulatorem
-
Wbudowany aparat cyfrowy
-
Uchwyt filtru
tak
Przysłona polowa
tak
Osłona przeciwpyłowa
tak

Ogólnie


Kolor
biały/niebieski
Waga (g)
10000
Wysokość (mm)
397
Długość (mm)
294
Seria
Oxion

Metody kontrastu


Ciemne pole
tak

Zakres zastosowania


Ciemne pole
tak
Alternatywne metody leczenia
tak
