NexiusZoom ESD series
Specifications
- Eyepieces: Pair WF 10x/22 mm eyepieces, both eyepieces with ± 5 diopter adjustments
- Head: Bino- or trinocular heads with 45° inclined tubes, interpupillary distance adjustable between 54 mm and 75 mm
- Objective: Zoom 1:6.7 objective with 0.67x to 4.5x magnifications, field of view from 33 mm to 4.9 mm, working distance 110 mm
- Auxiliary: 0.5x / 0.75x / 1.5x and 2.0x lenses available
- Stands: Ergonomically designed pillar or rack and pinion stand with LED illumination and 2 object clamps, ergonomically designed universal one arm or double arm stands without illumination, alloy metal cast, hardened off-white painted Focusing adjustment:Coarse adjustment
- Illumination: The 3 W transmitted and incident LEDs illuminators can be used simultaneously, both light intensities are adjusted separately
All optical parts are anti-fungus treated

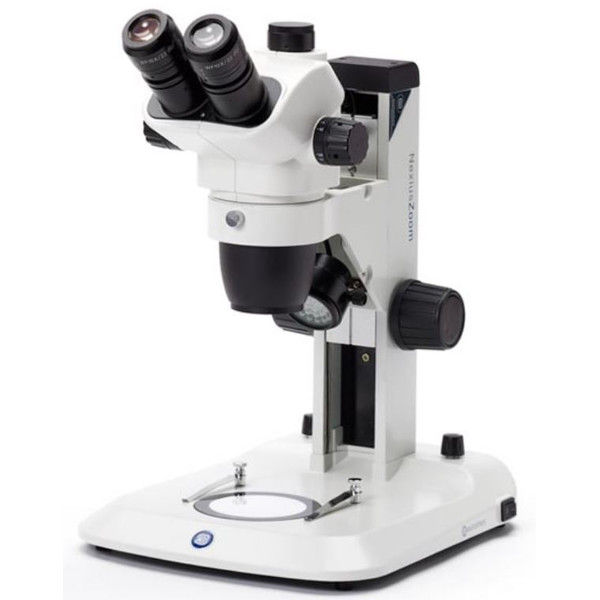

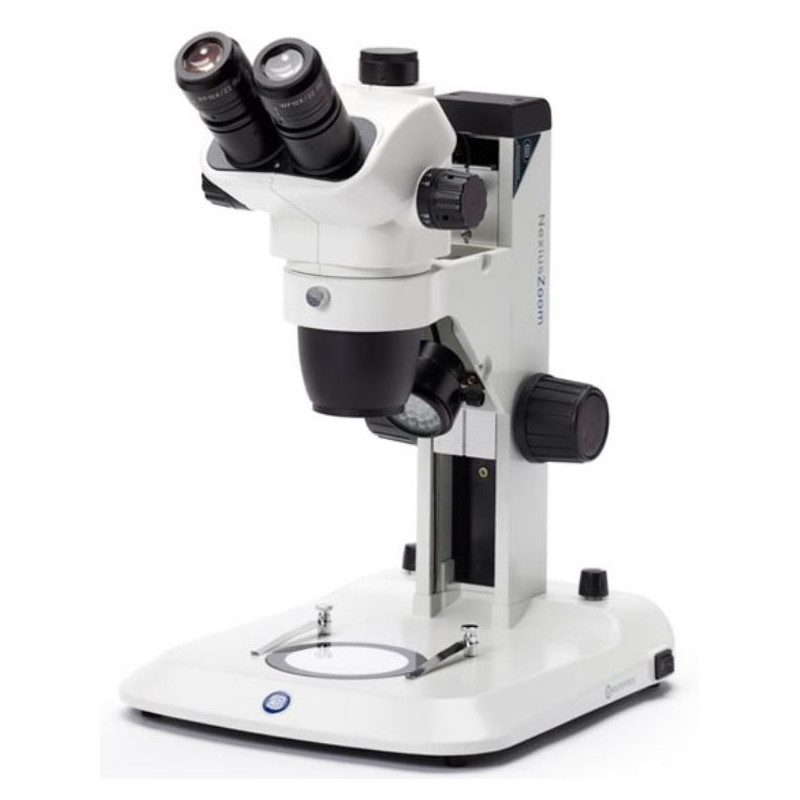

NexiusZoom Trinocilar Greenough Zoom stereo microscope NZ.1903-S
Trinocular stereo head with 0.67 x to 4,5 x stereo objective
WF10x/22 eyepieces in 45° inclined tubus with diopter adjustment
Total standard magnification: from 6.67 to 45x
Field of view: 33 to 4,9 mm
Working distance: 110 mm
Maximal Object Height: 148 mm
Metal pillar stand: Ergonomical reck and pinion stand
Illumination: Incident and translucent Light 3 W LED; both illuminations can be separatedly adjusted.
Packed in styrofoam box
