Statywy fotograficzne > Statywy > z drewna > Berlebach > Report > Berlebach Statyw drewniany Report Modell 142/P
Numer produktu: 8051

Statyw drewniany Report Modell 142/P

w dłuższym terminie
Artykuł już niedostępny + czas przesyłki

Opis artykułu

Polski tekst jest jeszcze w opracowywaniu. Na razie dostępna jest tylko wersja angielska. Przepraszamy!

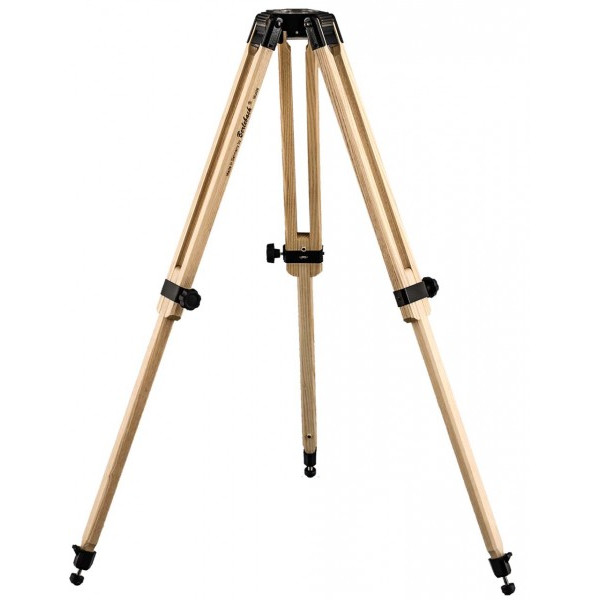

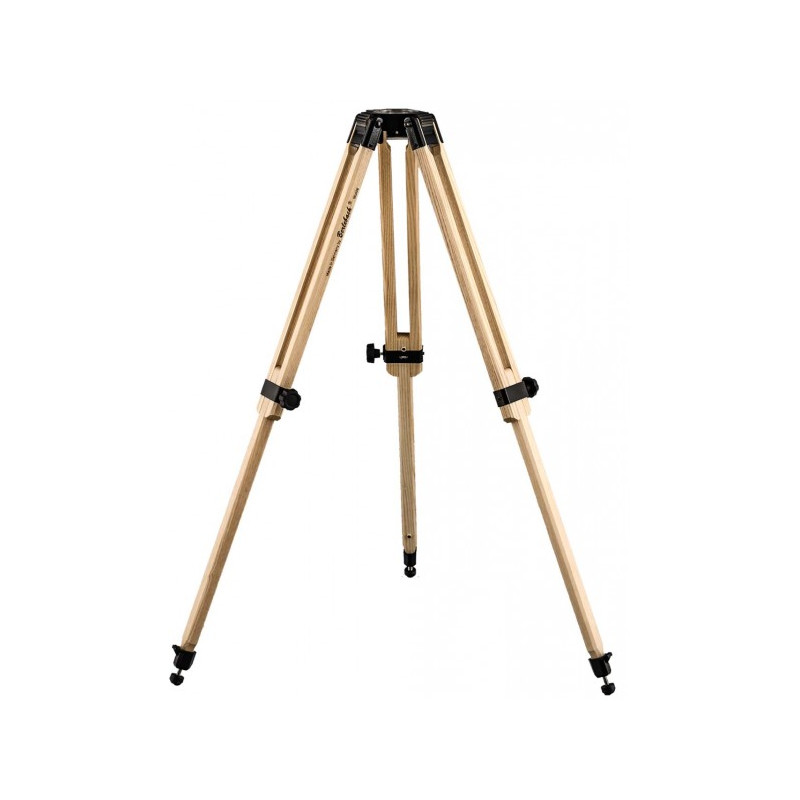

The Modular Report Tripod System: The light magnesium mounting head serves as module basis for 10 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components.
Thanks to the new stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.

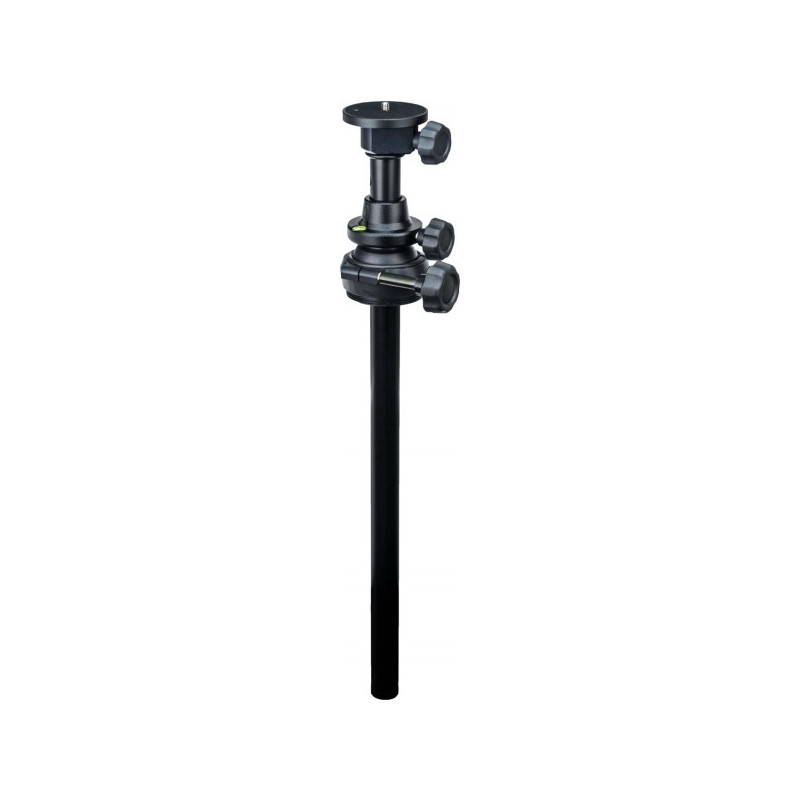

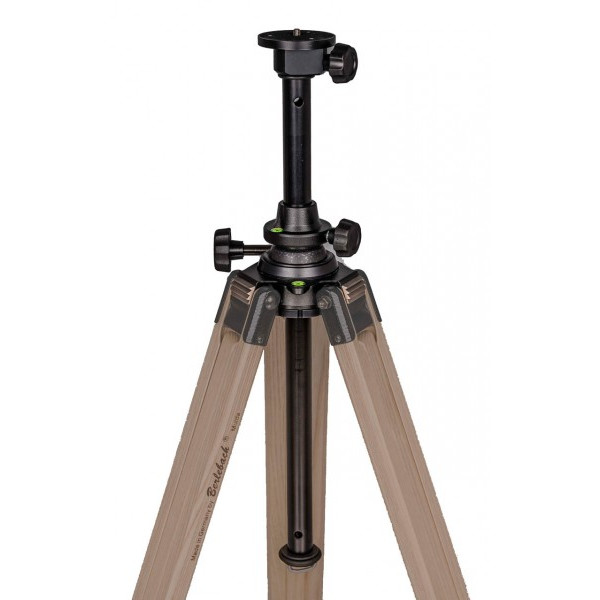

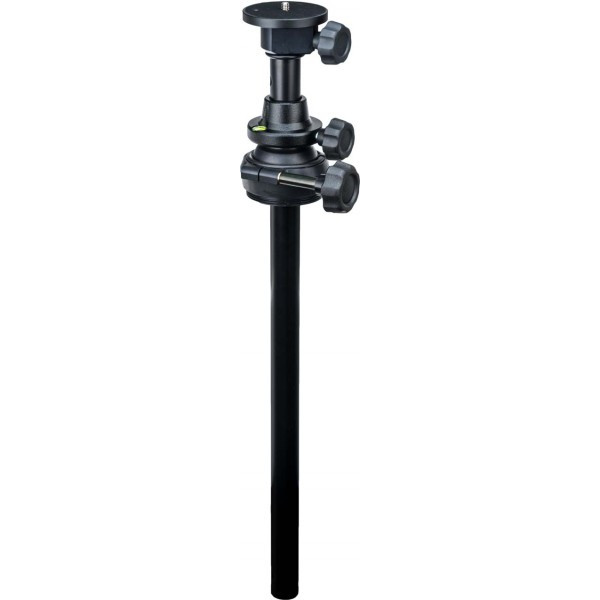

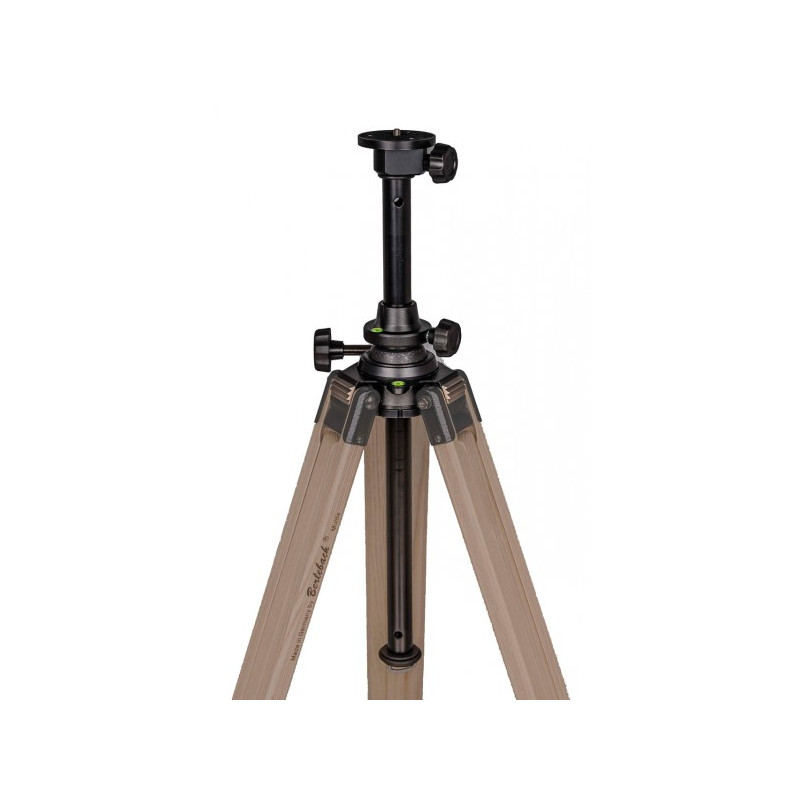

The tripod is equipped with the module insert 4, i.e. with a centre column which has a length of 50cm and a diameter of 25mm, made of precision-drawn light-metal tubing, and a levelling ball. The centre column is additionally equipped with a rotating panorama plate. By means of the centre column, the levelling ball can be tilted by 30° in all directions. The support plate made of aluminium has a diameter of 68 mm and is equipped with a fixed fastening screw (size to be selected) as well as three locking screws which secure the mounted system against unintentional loosening. The spirit level ensures a quick and precise adjustment.

When using an extra-short centre column (10cm), it is possible to work near ground level.

The specified maximum height applies if the centre column with a length of 50cm is extended.

Dane techniczne

Wydajność


Rodzaj konstrukcji
Statyw
Max. wysokość statywu (cm)
146
Udźwig (kg)
14
Długość ładunku (cm)
67
Gwint przyłączeniowy do głowicy statywu
1/4
Typ
Statyw foto i wideo
Ilość libeli
1
Regulacja nóżki statywu
Zakrętka dociskowa
Nóżka statywu
Gumowa stopka (Tworzywo sztuczne)
Wymiary płyty schowka (cm)
- (bez półeczki)
Wysunięcie nóżki statywu
1
Materiał
Drewno

Specyfika


Obsługa jedną ręką
tak
Głowica statywu w zakresie dostawy
nie
Torba transportowa w zakresie dostawy
-
Wbudowany układ ustawiania wysokości bieguna
-
Podziałka panoramiczna
tak
Stolik na akcesoria
-
Kolumna centralna
tak
Płyta szybkiego sprzęgu
-

Ogólnie


Waga (kg)
2,74
Seria
Report
Kolor
natura
Długość (cm)
-
Szerokość (cm)
-
Wysokość (cm)
55 - 146
