Mikroskop OKM 173, MET, POL, trino, Inf, planachro, 50x-400x, Auflicht, HAL, 30W

• The KERN OKM-1 is an excellent metallurgical reflected light microscope, e.g. B. for the surface quality inspection of raw materials and finished products in industry
• The strong and infinitely dimmable 30W halogen illumination (Philips) ensures excellent and high-contrast images
• The lighting unit with an integrated 5-fold filter wheel for blue, green, yellow, gray and empty enables the color filters to be changed quickly for different contrast views

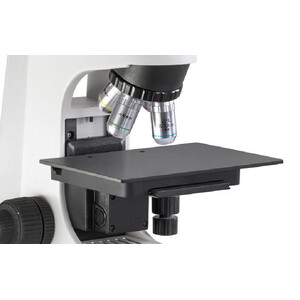

• A large mechanical stage for reflected light applications is configured as standard. The coarse and fine drive on both sides ensures optimal adjustment and focusing of your sample
• A simple polarization unit (analyzer and polarizer) is included
• A large selection of different eyepieces and lenses is also available
• A dust cover, eyecups and multilingual operating instructions are included in the scope of delivery
• A C-mount adapter is required to connect a camera to the trinocular version

field of use

• Metallurgy, materials testing, quality assurance

Applications/Samples

• Opaque and thick preparations, workpieces (surfaces, broken edges, coatings)

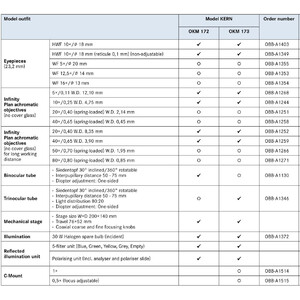

Technical specifications

• Infinity optics
• 4-position nosepiece
• Siedentopf tilted 30°, rotatable 360°
• Diopter adjustment on one side
• Overall dimensions W×D×H 440×200×460 mm
• Net weight approx. 7.488 kg
