Obserwacja natury > Noktowizory & kamery termowizyjne > Instrumenty > Kamery termowizyjne > Armasight > Command > Armasight Kamera termowizyjna Command 336, 3-12x50 (60 Hz)
Numer produktu: 54556

Kamera termowizyjna Command 336, 3-12x50 (60 Hz)

w dłuższym terminie
Artykuł już niedostępny + czas przesyłki

Opis artykułu

Uwaga: krajami, do których prowadzona jest autoryzowana wysyłka to: Argentyna, Australia, Austria, Belgia, Bułgaria, Kanada, Chorwacja, Czechy, Dania, Estonia, Finlandia, Francja, Niemcy, Grecja, Węgry, Islandia, Irlandia, Włochy, Japonia, Litwa, Łotwa, Luksemburg, Holandia, Nowa Zelandia, Norwegia, Polska, Portugalia, Rumunia, Słowacja, Słowenia, Korea Południowa, Hiszpania, Szwecja, Szwajcaria, Turcja i Zjednoczone Królestwo.

Polski tekst jest jeszcze w opracowywaniu. Na razie dostępna jest tylko wersja angielska. Przepraszamy!

Armasight Command
The Command is the most technologically-advanced Thermal Imaging bi-ocular for the sporting, law enforcement, and military markets. The Command is based on the advanced FLIR VOx microbolometer core that is suitable for a variety of uses and missions.

The Command is a solid state, uncooled, long-wave infrared, magnified, dedicated handheld thermal imager intended for day and nighttime missions. The 24/7 mission capability is only one of the strengths of the Command bi-ocular. The thermal imaging technology also allows you to detect targets by cutting through snow, dust, smoke, fog, haze, and other atmospheric obscurants. Unlike the use of laser targeting or near-infrared illumination to augment night vision equipment, the Command thermal imager is extremely difficult to detect with other devices, as it emits no visible light or RF energy.

Special User-Adjustable Imaging Tools

  • Active Contrast Enhancement (ACE) – a digital “Contrast” correction that allows for a smart scene optimization based on dynamic adjustments where a variety of contrast levels occur depending on relative scene temperature.
  • Second Generation Digital Detail Enhancement (DDE) – a “Sharpness” correction that is digitally enhances the picture to present clearer imagery, significantly improves edge sharpening and further reduces image noise.
  • Smart Scene Optimization (SSO) – a fine-tuning computational correction that significantly improves an overall visual acuity for targets that have thermal signatures similar to a surrounding background.
  • Automatic Gain Control (AGC) – a “Gain” correction that used to automatically adjust the gain to an appropriate range, the weaker the image signal, the stronger the gain.
  • User-Controlled Manual Non-Uniformity Correction/Flat-Field Correction (UCMNUC/FFC). There is a mechanical shutter between the camera sensor and the lens. This shutter is used to perform a non-uniformity correction (NUC) also known as flat-field correction (FFC. During FFC, the shutter presents a uniform temperature source to each detector element in the array. While imaging the flat-field source, the camera updates the offset correction coefficients, resulting in a more uniform image after the process is complete. All Command models allow for user to manually trigger or interrupt scheduled UCMNUC/FFC function.
  • Silent Shutterless NUC ™ (SSN) – In addition to user controlled manual NUC/FFC all Command models employ a digital supplemental non-mechanical flat-field correction that allows to extend the periods between mechanical shutter events and to further reduce image noise. SSN is always ON enhancement.

FEATURES

  • High-performance thermal imaging camera
  • Lightweight and robust design
  • Easy to operate
  • Manually adjustable eyepiece and objective lens
  • Real-time display
  • Special user-adjustable imaging tools
  • Current operational state information display
  • Wireless remote control
  • Analog video input and output
  • Powered by two standard CR123A batteries
  • Power input capability
  • Digital video recorder (optional)
  • Serviceability under severe conditions
  • Filled with dry nitrogen to prevent internal fogging

Specification Command 336 3-12x50 (60 Hz)

  • Magnification 2,8 (NTSC) / 3,4 (PAL)
  • Objective Lens Type Germanium
  • Objective Focal Length 50mm
  • Objective F-number 1:1
  • Type of Focal Plane Array FLIR Tau 2
  • Pixel Array Format 336×256
  • Pixel Size 17 µm
  • Display Type AMOLED SVGA 060 800x600
  • Video Recording Optional Digital Video Recorder with SD card slot
  • Operating Temperature -40°C to +50°C (-40°F to +122°F)

Dane techniczne

Wydajność


Rodzaj konstrukcji
Binokular (jeden obiektyw)
Technologia
Kamera termowizyjna
Powiększenie
3 (+ 4x Digital Zoom)
Obiektyw
50mm F:1
Rozdzielczość matrycy
336x256
Obrazowanie
różne wersje
Częstotliwość taktowania obrazu (Hz)
60
Wyrównanie dioptrii (dpt)
+/- 5
Żywotność baterii (h)
4

Specyfika


Oświetlacz podczerwieniowy
-
Cyfrowa ilustracja
tak
Wyjście video
tak
Montaż na głowę
-
Ochrona przed nadmiernym naświetleniem
tak
System dzienny i nocny
tak
Odporny na opryskanie wodą
tak
Dostępne soczewki nasadkowe
nie

Pole widzenia


Rzeczywiste pole widzenia (°)
7,8
Pole widzenia na 100m (m)
13,6
Granica zbliżenia (m)
5

Zakres zastosowania


Ochrona obiektu & Obserwacja
tak
Polowanie & Obserwacja natury
tak
Nawigacja & Wędkowanie
tak
Eskapady wgłąb jaskiń & Kemping
tak

Ogólnie


Kolor
czarny
Długość (mm)
238
Szerokość (mm)
100
Wysokość (mm)
62
Waga (g)
800
Seria
Command

Inne


Typ baterii
CR123 (4 sztuki)

Zalecane akcesoria

Konserwacja > Środek czyszczący (3)

Omegon Zestaw do czyszczenia optyki 7 w 1

$ 19,90*
Konserwacja > Inne uwagi (2)

Omegon Scireczka z mikrofazy 20cm x 20cm

$ 4,90*
Inne (1)

Varta Bateria litowa CR123

$ 8,90*

*Wszystkie ceny obejmują VAT, plus koszty przesyłki.

Armasight Kamera termowizyjna Command 336, 3-12x50 (60 Hz)

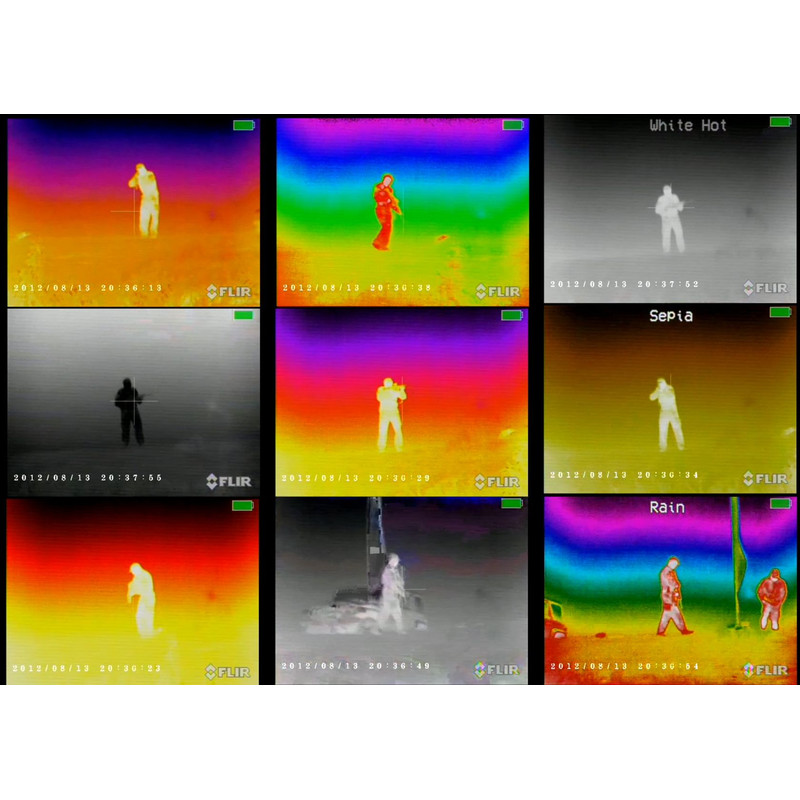

Ten przykładowy obraz pokazuje przykładowe opcje różnych trybów kolorów.
Armasight Kamera termowizyjna Command 336, 3-12x50 (60 Hz)

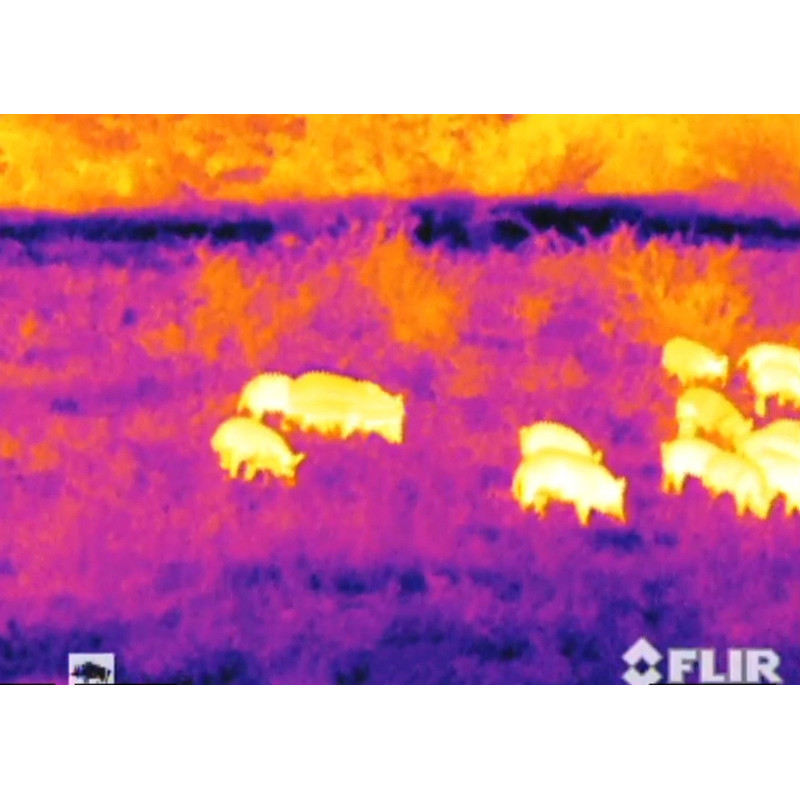

Przykładowe zastosowanie nr 1
Armasight Kamera termowizyjna Command 336, 3-12x50 (60 Hz)

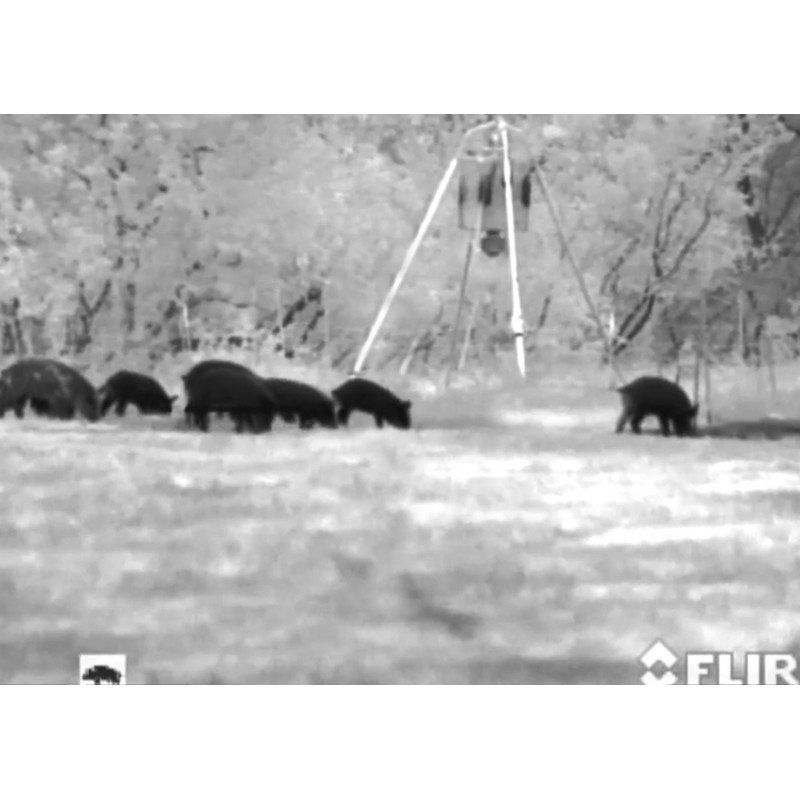

Przykładowe zastosowanie nr 2
