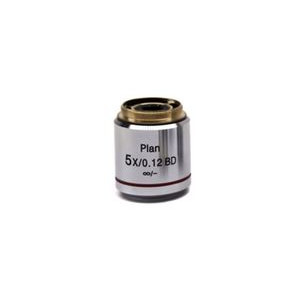

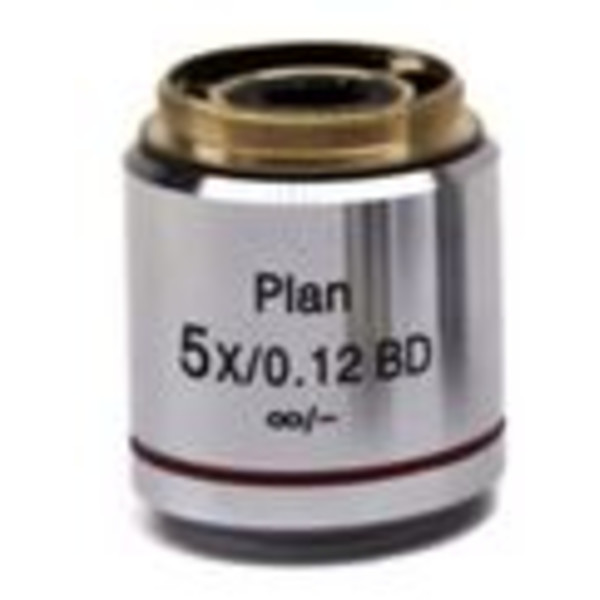

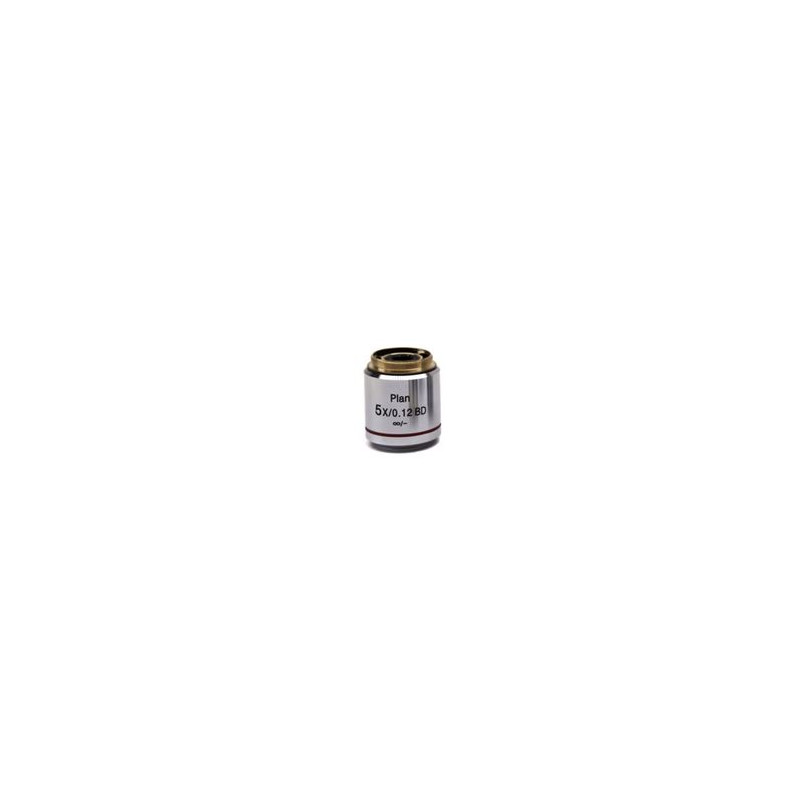

Model: IOS MET Planachromatic for Darkfield
Description: Objectives for brightfield and incident darkfield observation
- Magnification / Numerical Aperture
• 5X / 0.12 (M-1109)
• 10X / 0.25 (M-1110)
• 20X / 0.40 (M-1111)
• 40X / 0.60 (M-1112)
• 50X / 0.75 (M-1113)
• 100X / 0.80 (M-1114)
- Optical Correction MET Planachromatic.
- Long working distance
- Flat field correction for 24 mm Field Number
- planachromatic spherical and chromatic corrections.
- Mechanical tube length IOS (infinity-corrected tube length)
- Cover Glass Thickness 0 mm (no cover glass)
- Working Distance • 5X W.D. 12 mm
• 10X W.D. 10 mm
• 20X W.D. 4.3 mm
• 40X W.D. 2.9 mm
• 50X W.D. 0.32 mm
• 100X W.D. 2 mm
- Screw Thread 25mm thread
- Parfocal Distance 45 mm
