NZ.1703-AP, NexiusZoom EVO, 6.5x to 55x Gelenkarm m.Tischklemme, o. Beleuchtung, trino

The Euromex NexiusZoom and NexiusZoom Evo stereomicroscopes allow you to examine your samples with high-performance precision. It generates three-dimensional images for microscopy of the highest standard. These high-end zoom microscopes are perfect for analyzing all types of surfaces or for observing biological samples. The NexiusZoom stereo microscopes are available with a wide range of stands and are supplied with or without LED lighting. Ideal for all types of educational and laboratory applications. Magnifications from 3.3 x up to 220 x can be achieved with additional supplementary lenses and objectives

Nexius Zoom EVO series

Technical specifications

• Eyepieces : pair of WF 10x/23 mm, both eyepieces with ± 5 diopter adjustment
• Head: binocular or trinocular head with 45° angled view, interpupillary distance adjustable from 54mm to 75mm
• Lenses: Zoom from f/8.4 lenses with 0.65x to 5.5x magnification. Field of view from 35.4 mm to 4.2 mm. Large working distance of 110 mm
• Conversion lens: 0.5x / 0.75x / 1.5x and 2.0x optional
• Tripod: Ergonomically designed column or rack and pinion tripod with LED lighting and two object clamps or ergonomically designed overhanging tripod with one or two arms with coarse adjustment, without lighting.
• Material: metal alloy, painted white
• optical parts are treated anti-fungal

NZ.1703-AP, NexiusZoom EVO, 6.5x to 55x articulated arm stand, table clamp

• Lens: 0.65x - 5.5x
• Eyepieces: WF 10x/23 eyepieces in 45° inclined tube with +/- 5 diopter adjustment
• Magnification : from 6.5 to 55x
• Field of view: from 32.8 mm to 24.9 mm
• Free working distance : is 110 mm
• Maximum object height: 148 mm
• Packed in a styrofoam box

• Tripod: articulated arm with table clamp
• Lighting : none
• Tube: trinocular

EYELETS

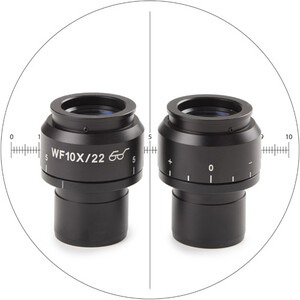

The NexiusZoom Evo comes with a pair of HWF 10x/23mm eyepieces

LENSES

The NexiusZoom Evo is equipped with a plan achromatic 1:8.4 lens with 0.65x to 5.5x magnification. Field of view from 35.4 mm to 4.2 mm. Large working distance of 110 mm

Attachment lens 0.3x / 0.4x / 0.5x / 0.75x / 1.5x and
2.0x are available. All lenses are anti-fungal treated
